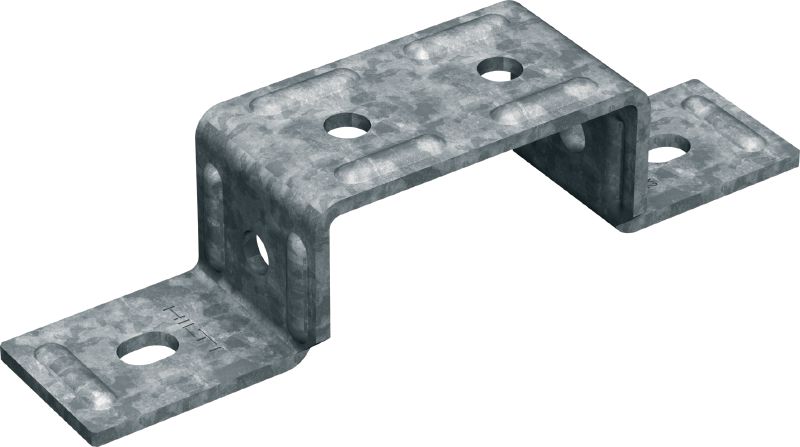

MT-CC-40/50X2 OC U-Fitting

Clamp MT-CC-40/50X2 OC #2322393

Clamp for channel-to-channel or channel-to-girder cross-connections with MT strut channel, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Choose options

Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 819.09

AED 81.91 / 1 Piece

Technical Data

IS_MT_CC_40X2_0001 (227819)
Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
0.41 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Compatible with MT Twist-Lock and MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
  • Universal – complete many different applications using few parts
  • Twist-lock and Thread Forming Bolt channel connector takes up shear and tensile loads
  • Compatible with multiple strut channel/girder profiles
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion

Applications

  • Cross-connection of one strut channel to another channel or girder
  • Suitable for use in moderately corrosive environments
