MC-A-90 OC-A

Name: MC-A-90 OC-A
Brand: Hilti
SKU: r1233537

New product

Item #r1233537

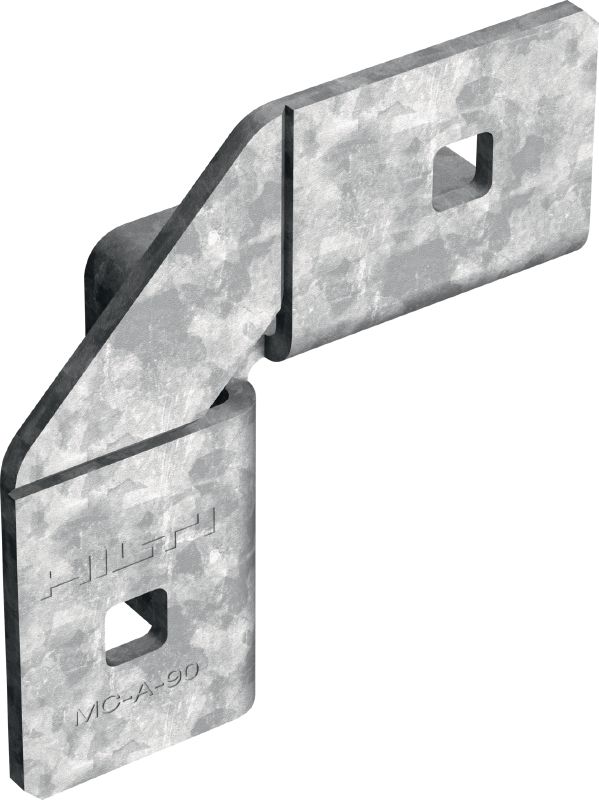

Hot-dip galvanised (HDG) angle connector for 90-degree attachment of MC-3D channels to one another with higher load requirements outdoors

Material composition: Structural steel with minimum yield strength of 235 N/mm2
Surface finish: Hot-dip galvanized, 56 µm - ASTM A153
Material thickness: 4 mm

More technical data

Customers also searched for metal connectors, installation channel, connectors, 90 degree connector or 3d angle

Features

Various, easy installation options
Can be fitted regardless of the direction in which the open side of the channel is facing
High load capacity

Applications

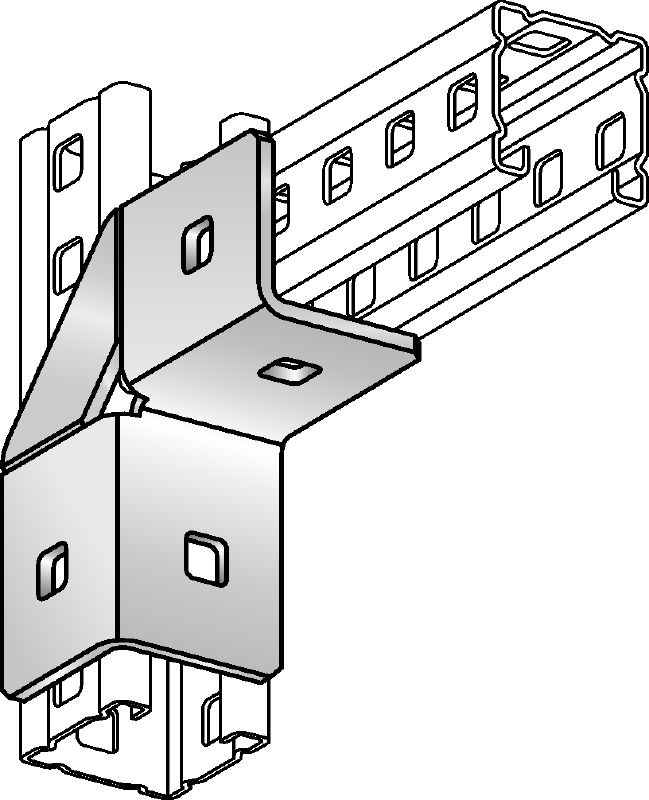

Connecting any two MC channels at 90 degrees
Assembly of two and three-dimensional modular system structures

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Angle MC-A-90 OC-A

- PDF Instruction for use MC-A-90, Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 874.5 kB ]

MC-A-90 OC-A

Hot-dip galvanised (HDG) angle connector for 90-degree attachment of MC-3D channels to one another with higher load requirements outdoors
