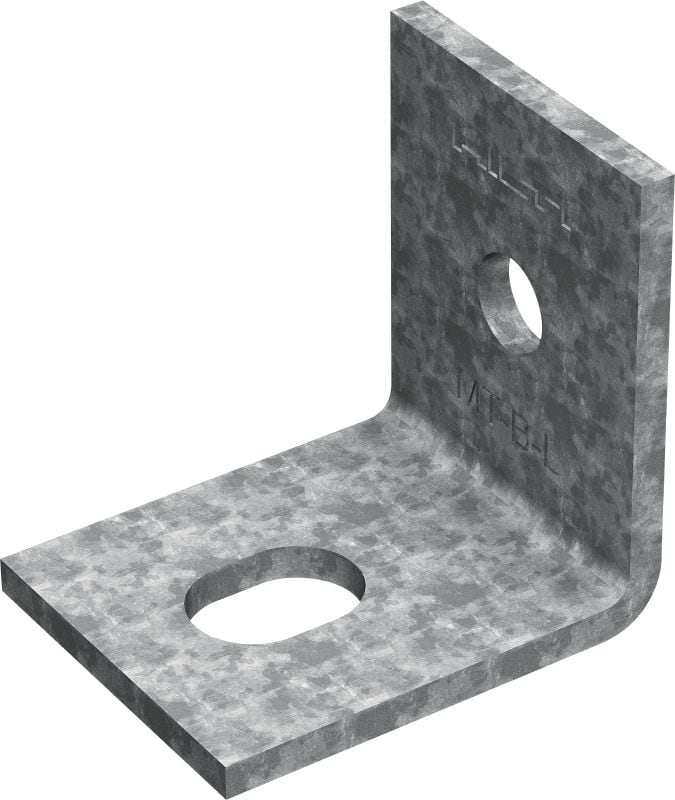

MT-B-L OC Light-duty baseplate

1-hole Baseplate MT-B-L OC #2272088

Post base connector for anchoring light-duty strut channel structures to concrete or steel, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Hot-dip galvanised - for outdoor use
  • Material thickness: 4 mm

Choose options

Pack size
  • 20 pc
Product options
Quantity
Packs
Total Piece
20
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 562.39

AED 28.12 / 1 Piece

Technical Data

01_IS_MT-B-L_0001 (218662)
Material composition
Q235 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Material thickness
4 mm
Weight
0.12 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with extra-light loads to a base material
  • Suitable for use in moderately corrosive environments
