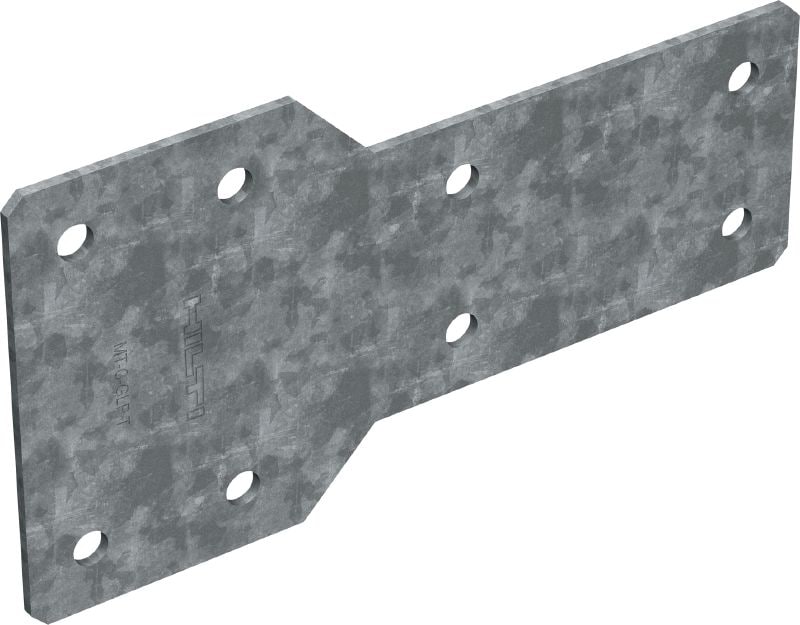

Gusset plate for T-shaped connections with MT-80, MT-90 or MT-100 girders, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
  • Adaptable – unlike welding, gusset plates allow modular metal framing to be modified for future MEP requirements
  • Increased load capabilities – can be used in combination with the MT-C-GL OC and MT-C-GL A OC
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Fastening T-shaped connections between two MT-80, MT-90 or MT-100 girders
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
