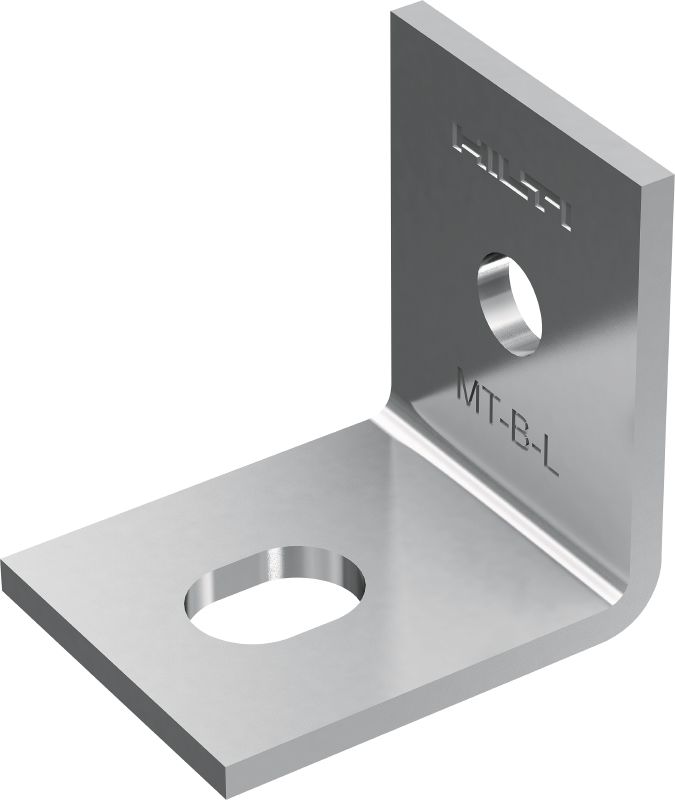

MT-B-L Light-duty baseplate for strut channels

LCG003337_v1 (218273)

LCG003337_v1 (218273)

Base connector for anchoring light-duty strut channel structures to concrete or steel

Material composition: Q235 or better steel
Surface finish: Indoor Coated - Pre-galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Technical Data

Material composition

Q235 or better steel

Surface finish

Indoor Coated - Pre-galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

Fastening MT strut channel to concrete floors, walls or ceilings
Fastening MT strut channel to structural steel
Anchoring metal framing and MEP support structures with extra-light loads to a base material
Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
