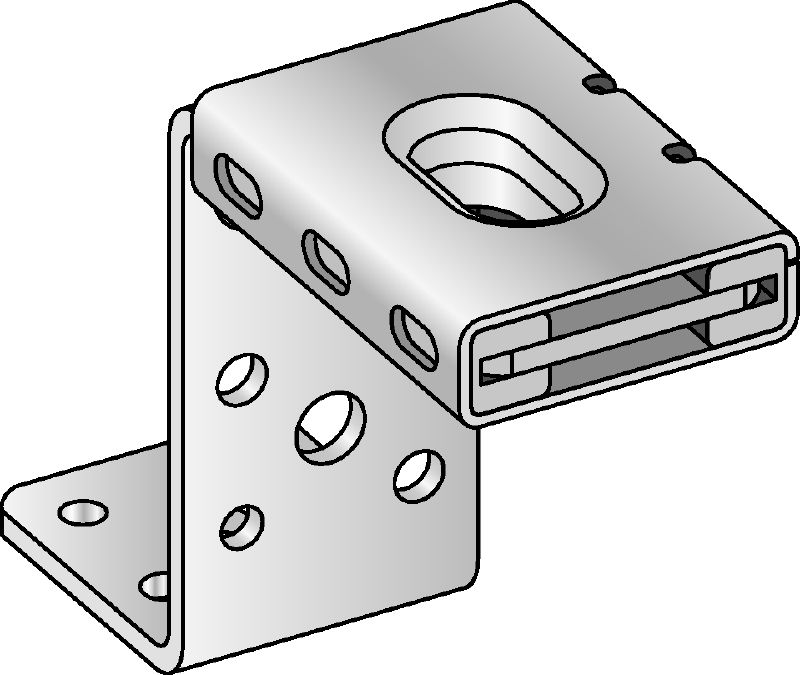

Galvanised air duct bracket for fastening medium ventilation ducts overhead

  • Noise reduction: 12 dB (A)
  • Material composition: DD11 steel - DIN EN 10111, EPDM
  • Surface finish: Indoor Coated - Electro galvanised

Technical Data

13819.eps
Noise reduction
12 dB (A)
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
40° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

Features & Applications

Features

  • Convenient solution for fastening ventilation ducts directly to ceilings, suspending from threaded rods or in conjunction with the MQ strut system for rising ducts
  • Scale for precise alignment and stand-off installation
  • Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
  • 30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation
  • Can be fastened to MQ installation channels or directly to the base material

Applications

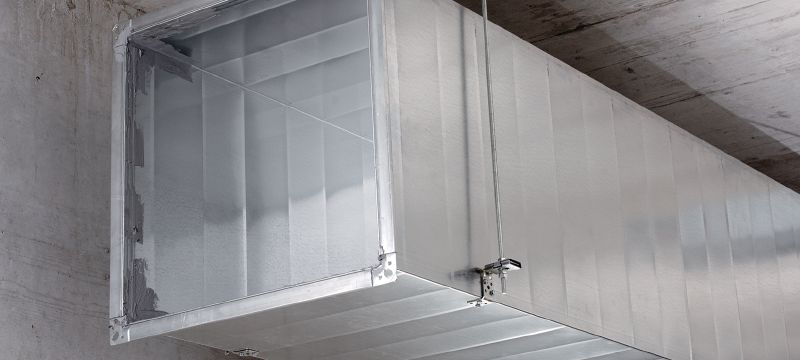

  • Fastening rectangular air ducts to ceilings

For approval or certificate information, please see individual items.
