MQZ-L-F Bored plate
Hot-dip galvanised (HDG) bored plate for trapeze assembly and anchoring
- Material composition: S235JR - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Customers also searched for installing metal channels, installation supports, hot dipped glavanised connectors, HDG connectors or metal connectors.
Choose options
Hole diameter - D
- 9.5 mm
- 11.5 mm
- 13.5 mm
- 17.5 mm
Pack size
- 20 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 174.30
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Features & Applications
Features

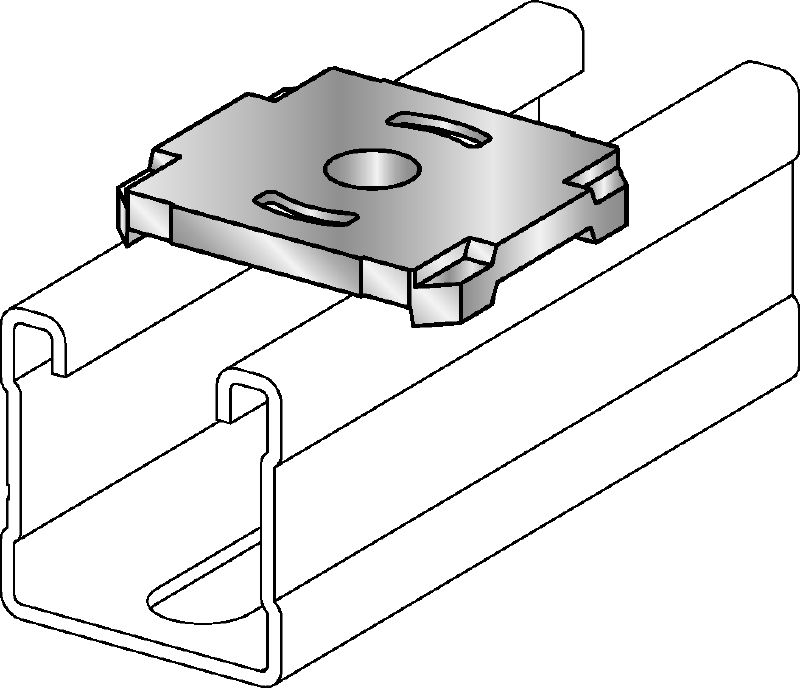

- Suitable for MQ strut channels and brackets
- Easy-to-use single part
- Suitable for MQ installation channels and brackets
Applications

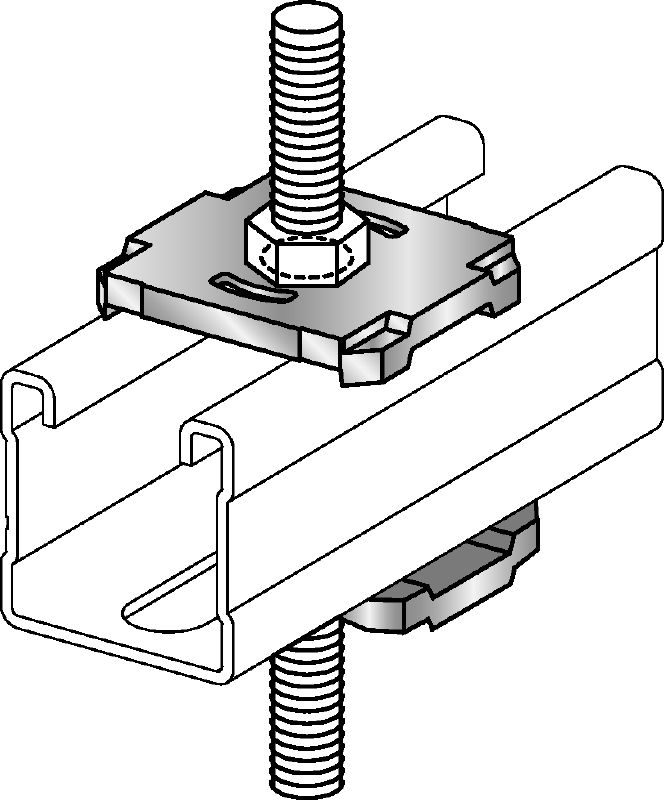

- Attaching strut channels and brackets to walls, ceilings or floors
- Wing nut or spring nut applications with channels or brackets
- Anchor fastening of installation channels
For approval or certificate information, please see individual items.
