GA thread adapters

Thread adapter GA M8-M10 #47389

L044110.tif

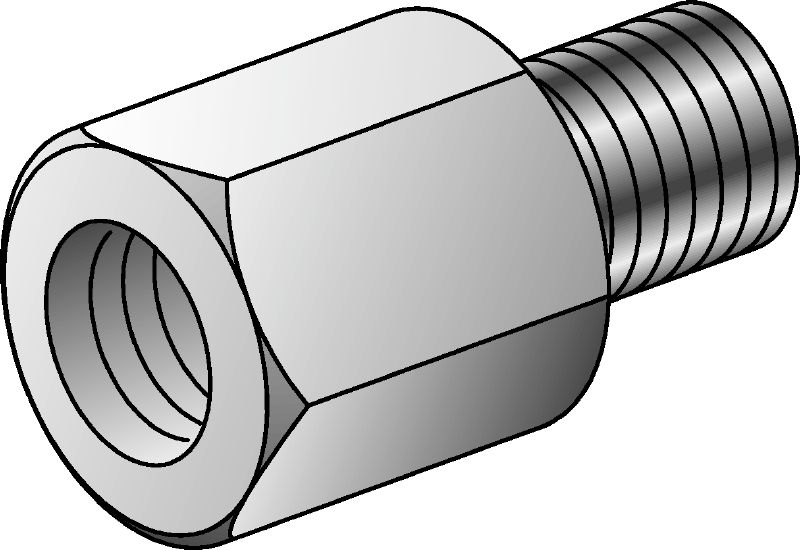

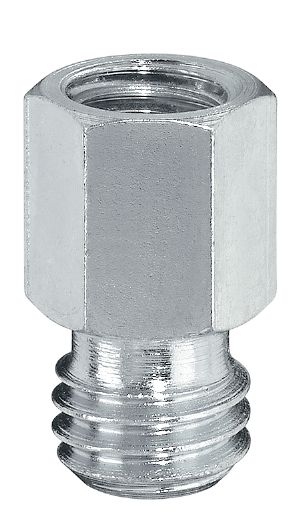

Thread adapter
L044110.tif
Thread adapter

Galvanised thread adapters to connect various internal and external thread diameters

  • Material composition: Steel grade 4.6
  • Surface finish: Indoor Coated - Electro galvanised
  • Wrench size - W: 13 mm

Choose options

Inside thread - MI
  • M10
Outside thread - MA
  • M8
Length - L
  • 23 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 1,776.65

AED 17.77 / 1 Piece

Technical Data

Material composition
Steel grade 4.6
Surface finish
Indoor Coated - Electro galvanised
Wrench size - W
13 mm
Inside thread - MI
M10
Outside thread - MA
M8
Length - L
23 mm
Weight
12 g
A
15 mm
B
6 mm
Load range
Light-duty
Maximum tensile load - F
4.31 kN

Features & Applications

Features

  • Allows various compatible Hilti components to be fitted and matched together
  • Easy to use

Applications

  • Connecting various internal/external thread diameters
  • Recommended for use in dry, interior environments
