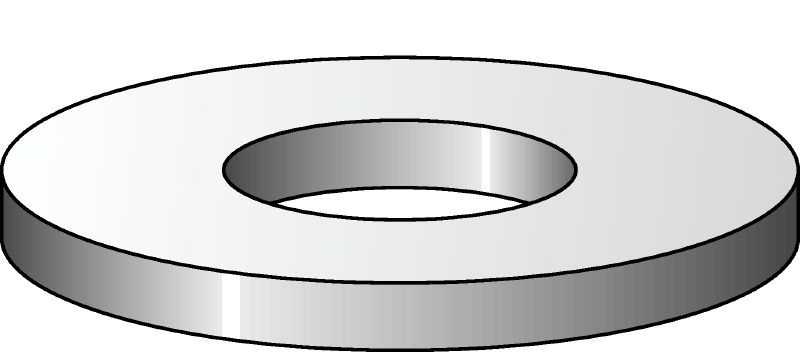

Flat washer (ISO 7089)
Flat washer A 10,5/28-F #2063247
Hot-dip galvanised (HDG) flat washer similar to ISO 7089 used in various applications
- Material composition: Steel
- Surface finish: Outdoor Coated - HDG
- Inside diameter - DI: 10.5 mm
Customers also searched for flat metal washers, hot dipped galvanised washers, metal washers, metal connectors or installation channel.
Choose options
Inside diameter - DI
- 10.5 mm
Outside diameter - DA
- 28 mm
Pack size
- 100 pc
Quantity
Packs
Total Piece
100
Ex Vat and Packaging/Forwarding charges
AED 149.12
AED 1.49 / 1 Piece
Technical Data
Material composition
Steel
Surface finish
Outdoor Coated - HDG
Inside diameter - DI
10.5 mm
Outside diameter - DA
28 mm
Weight
8 g
Cross section thickness - s
2 mm
Material thickness
2.0 mm
Load range
Light-duty
Features & Applications
Features
- Available in various diameters
- Hot-dip galvanised finish for corrosion resistance
Applications
- Spreading the applied load – helping to prevent damage to the bearing surface
- Recommended for use in moderately corrosive outdoor and indoor environments
