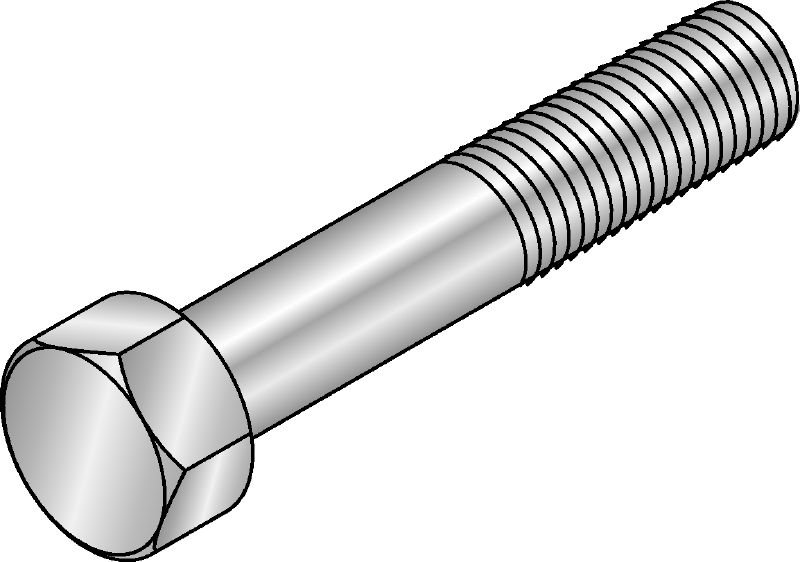

Hexagon bolt DIN 931
Hexagon bolt M10x65 zinced #2063243
Galvanised hexagon bolt corresponding to DIN 931
- Thread - M: M10
- Material composition: Steel grade 8.8
- Surface finish: Indoor Coated - Electro galvanised
Customers also searched for hexagon bolts, metal connectors, installation channel, installing metal channels or metal bolts.
Choose options
Thread - M
- M10
Thread length - L
- 27 mm
Pack size
- 100 pc
Quantity
Packs
Total Piece
100
Ex Vat and Packaging/Forwarding charges
AED 657.19
AED 6.57 / 1 Piece
Technical Data
Thread - M
M10
Material composition
Steel grade 8.8
Surface finish
Indoor Coated - Electro galvanised
Wrench size - W
17 mm
Thread length - L
27 mm
Height - H
6 mm
Weight
45 g
A
65 mm
Load range
Medium-duty
Features & Applications
Features
- Consistent production quality – for higher fastening reliability
- Easy to instal – provides secure and stable connections
- Standard-compliant screw – meets DIN 921
Applications
- Various connections with Hilti Modular Support Systems
- Recommended for use in dry, interior environments
