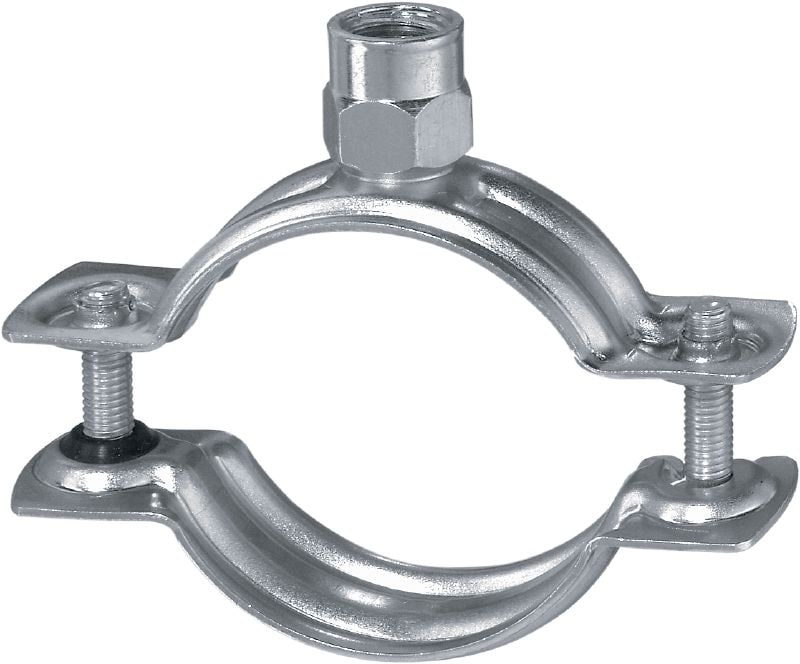

MP-H Quick-close light-duty pipe clamp

Resid. pipe ring MP-H155-163 M8/M10 #386442

Galvanised pipe clamp with quick closure for high productivity in light-duty applications

  • Clamping range - D: 155 - 163 mm
  • Thread connection - M: M8, M10
  • Maximum load - F: 1500 N
standard

Choose options

Clamping range - D
  • 155 - 163 mm
Thread connection - M
  • M8, M10
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 205.32

AED 20.53 / 1 Piece

Technical Data

IS_PR_0027_A2.eps
Clamping range - D
155 - 163 mm
Thread connection - M
M8, M10
Maximum load - F
1500 N
Approvals
ETA
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
2.3 mm
Cross section width - b
25 mm
Width - B
223 mm
Product class
Standard
Distance centre pipe to top - h
107 mm

Documents

Features & Applications

Features

  • Two-screw pipe clamp with side swiveling mechanism
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Click closure for easier and faster pre-fixing
  • Welded M8/M10 double connection head for more flexibility
  • Clamping range without gaps

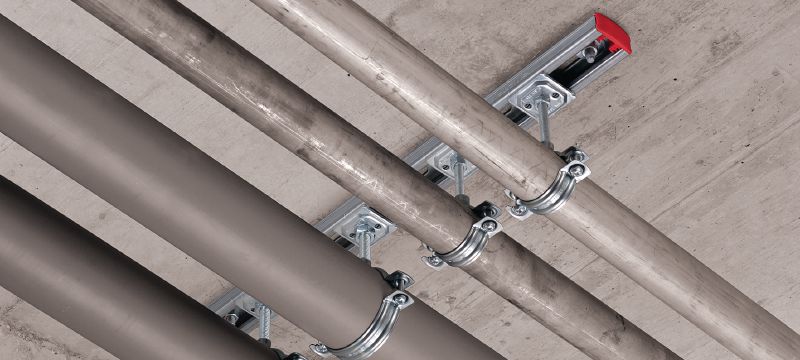

Applications

  • Light-duty pipe installations up to 6" (or 172mm)
  • Fastening fresh water, waste water and heating pipes
  • Sanitary, heating and gas applications with pipes of various materials
  • Recommended for use in dry, interior environments
  • Heating and plumbing pipe installation
