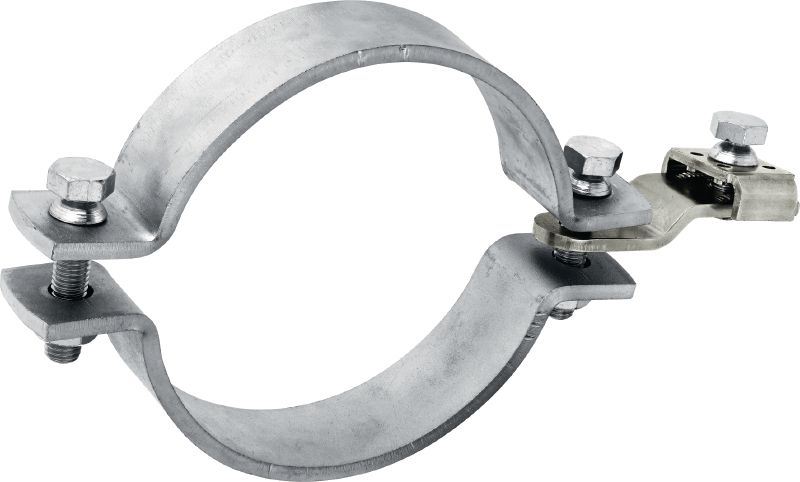

MQS-SP seismic sprinkler pipe clamp

Features & Applications

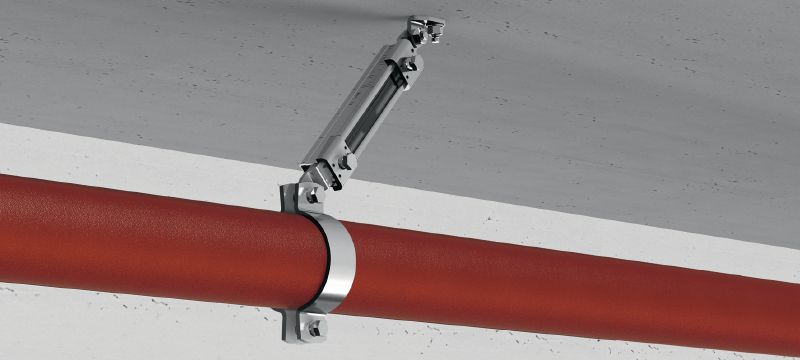

MQS-SP, Seismic sprinkler pipe ring (81378)

MQS, Seismic (81669)

MQS, Seismic (81675)

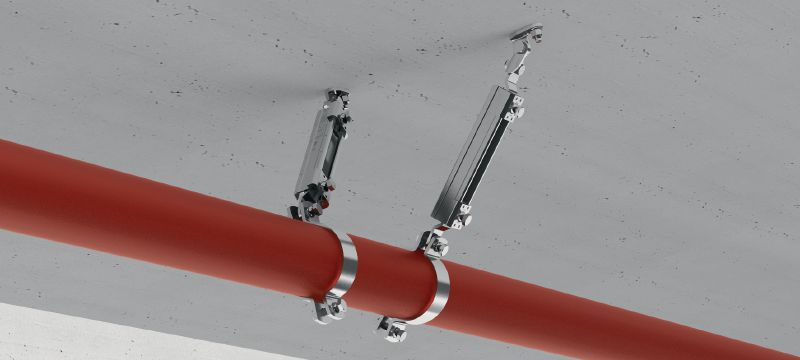

MQS-SP-L, Seismic Longitudinal (81671)

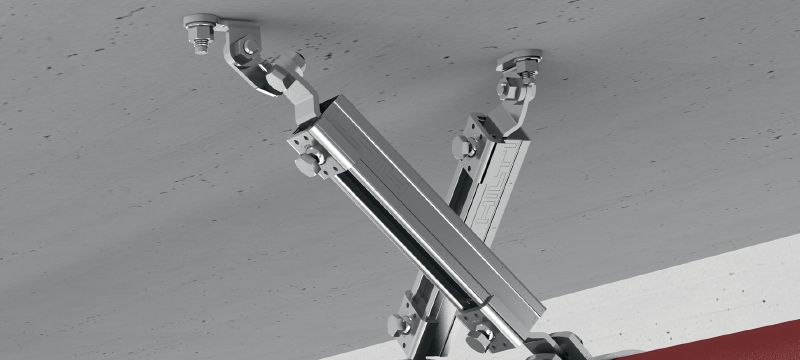

MQS-SP-T, Seismic Transversal (81670)

MQS-SP, Seismic sprinkler pipe ring (81379)

Galvanised sprinkler pipe clamp with FM approval for seismic bracing in fire sprinkler applications

Material composition: S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish: Indoor Coated - Electro galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Clamping range - D

60 - 65 mm
73 - 78 mm
108 - 116 mm
162 - 170 mm

Nominal pipe size (imperial)

2 in
2-1/2 in
4 in
6 in

Pack size

5 pc
10 pc

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 1,511.99
