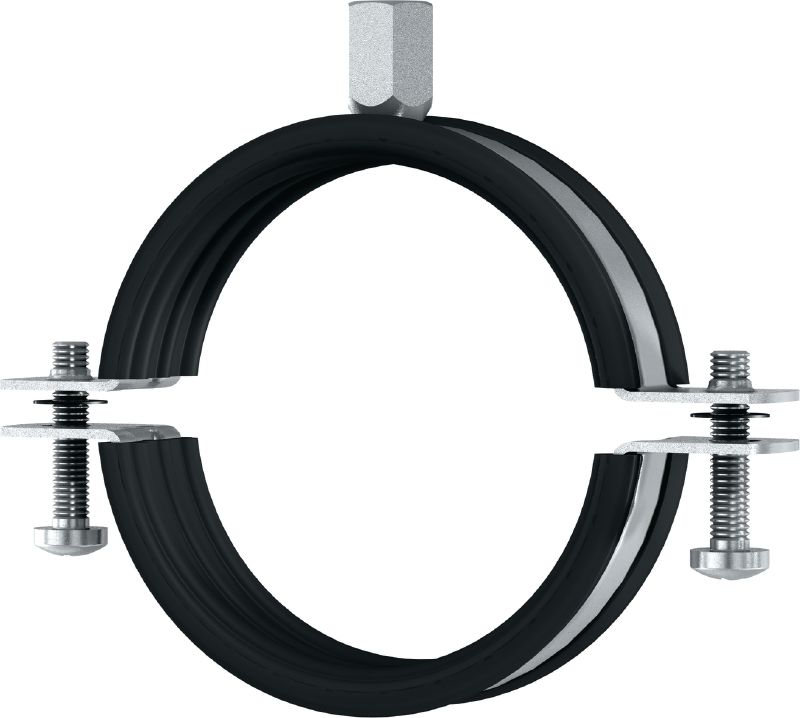

MP-PI pipe clamp
Galvanised pipe clamp with sound insulation for economical light/medium-duty applications
- Approvals: Acustic insulaton DIN 4109 inspected, Fire Class E
- Noise reduction: 16 dB (A)
- Temperature resistance: -40 - 110 °C
Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.
Choose options
Clamping range - D
- 11 - 15 mm
- 16 - 20 mm
- 20 - 24 mm
- 25 - 28 mm
- 32 - 36 mm
- 38 - 46 mm
- 48 - 53 mm
- 54 - 58 mm
- 59 - 66 mm
- 67 - 73 mm
- 75 - 80 mm
- 81 - 87 mm
- 87 - 92 mm
- 107 - 115 mm
- 120 - 128 mm
- 135 - 143 mm
- 149 - 161 mm
- 162 - 170 mm
- 177 - 182 mm
- 192 - 204 mm
- 207 - 219 mm
- 218 - 226 mm
- 242 - 253 mm
- 272 - 281 mm
- 313 - 326 mm
Thread connection - M
- M12
- M8, M10
Nominal pipe size (imperial)
- 1/4 in
- 3/8 in
- 1/2 in
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
- 4 in
- 5 in
- 6 in
- 8 in
- 10 in
- 12 in
Pack size
- 10 pc
- 25 pc
- 50 pc
- 100 pc
- 150 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 485.31
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected, Fire Class E
Noise reduction
16 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
SPCC-SD FB - Q/BQB402, DC01 – EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM
Hardness insulation material
75° ±5° Shore A
Additional product information
If pipe rings diameter 8 inch and above are fixed with two threaded roads, the maximum load can be achieved
Documents
Features & Applications
Features
- Two-screw pipe ring to simplify pipe installation
- Short connection head allows installation close to a wall, floor or ceiling
- Clamping ranges suitable for all standard plastic and steel pipes
- High quality recognised by third-party approvals
- Securely fixed rubber inlay – virtually impossible to drop or lose
Applications

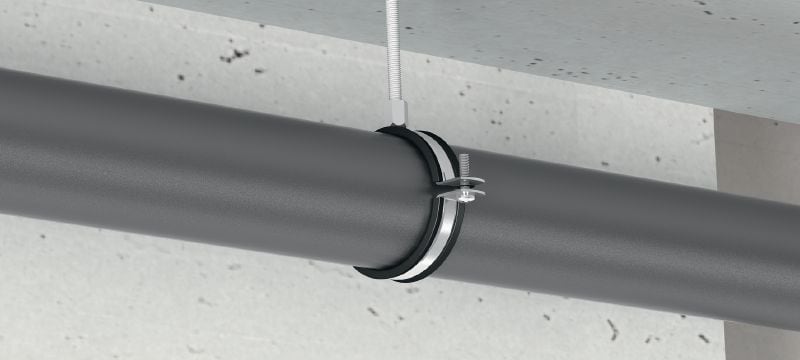

- Light to medium-duty pipe installations
- Fastening pipes in residential and industrial construction
- Fastening fresh water, waste water and heating pipes in residential and industrial construction
- Recommended for use in dry, interior environments
- Pipe rings for use in dry interiors only
For approval or certificate information, please see individual items.
