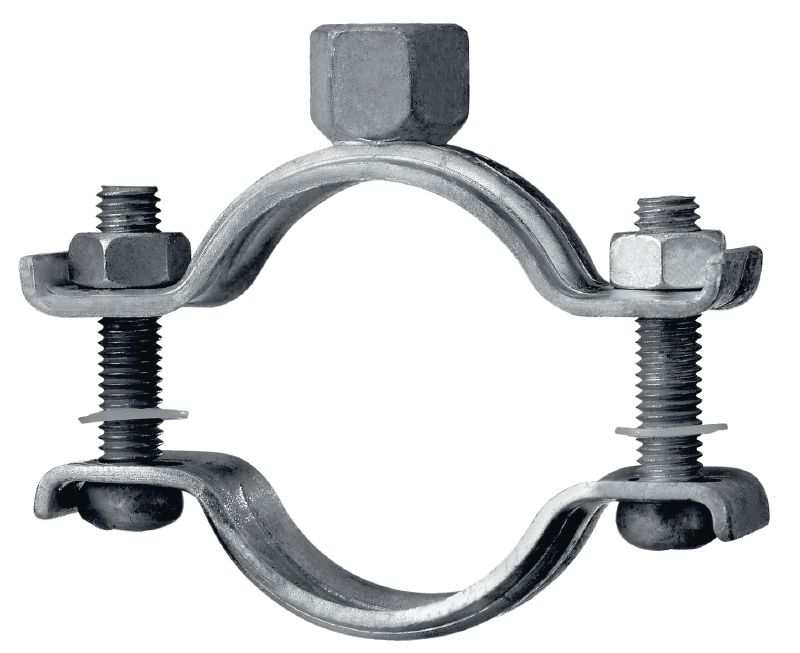

MP-M-F heavy-duty pipe clamp

Heavy-d. pipe ring MP-M-F 2" #304275

hot-dip galvanised (HDG) pipe clamp without sound insulation for heavy-duty applications

  • Clamping range - D: 57 - 64 mm
  • Nominal pipe size (imperial): 2 in
  • Thread connection - M: M10
standard

Choose options

Clamping range - D
  • 57 - 64 mm
Thread connection - M
  • M10
Nominal pipe size (imperial)
  • 2 in
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

5 Packs (Total pieces 50)

Ex Vat and Packaging/Forwarding charges

AED 3,285.01

AED 65.70 / 1 Piece

Technical Data

28514_X15.eps
Clamping range - D
57 - 64 mm
Nominal pipe size (imperial)
2 in
Thread connection - M
M10
Maximum load - F
1800 N
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Clamping screw
M8
Tightening torque
3 Nm
Cross section thickness - s
2 mm
Cross section width - b
24 mm
Width - B
111 mm
Product class
Standard
Distance centre pipe to top - h
45 mm

Documents

Features & Applications

Features

  • Closure screws secured to help prevent loss
  • Solid welded-on connection head
  • Clamping screws secured against loss
  • Profiled clamp band for higher rigidity
  • High resistance to corrosion

Applications

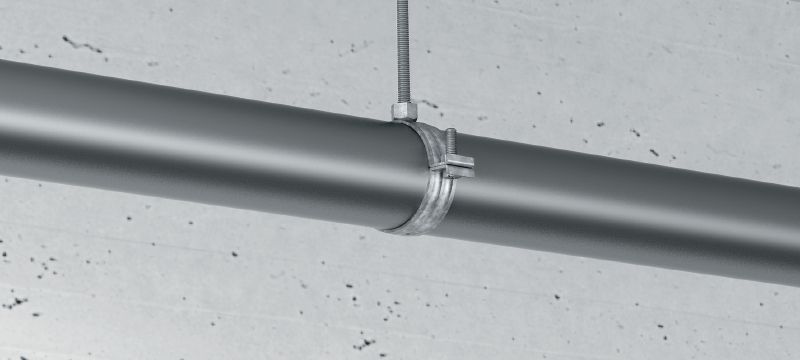

  • heavy-duty pipe installations up to 3"
  • Installing industrial pipes
  • Mounting process and control queues
