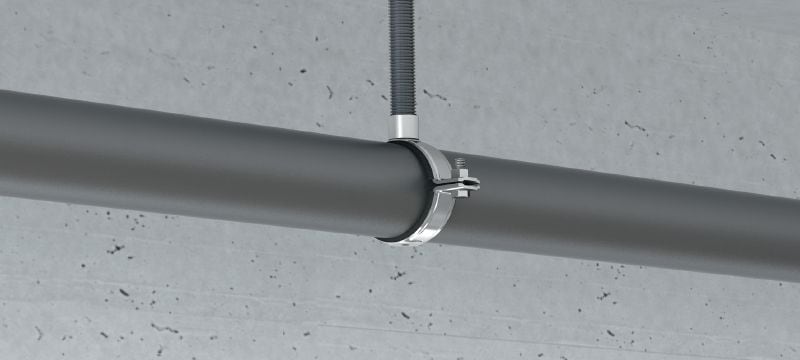

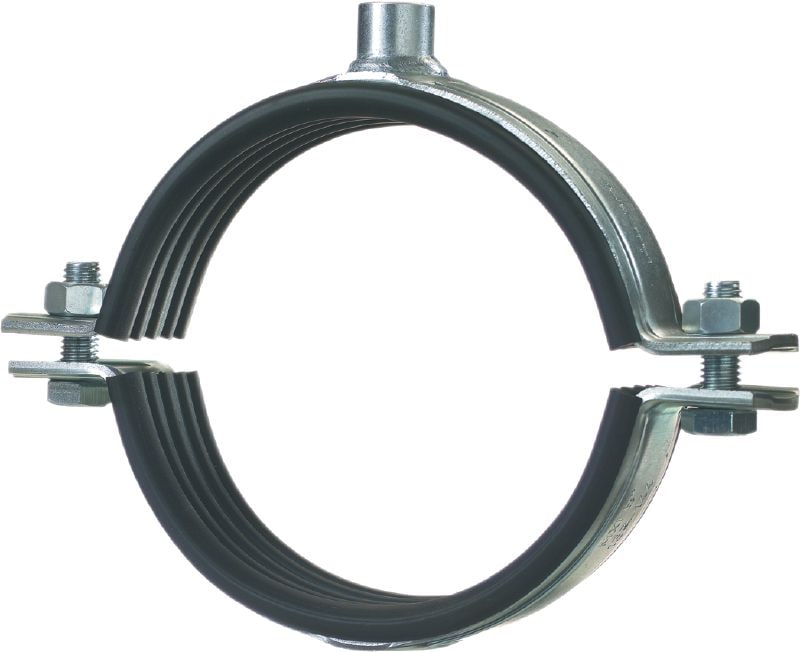

MP-MXI-F heavy-duty pipe clamp

hot-dip galvanised (HDG) pipe clamp with sound insulation for extra heavy-duty applications

  • Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
  • Noise reduction: 16 dB (A)
  • Temperature resistance: -50 - 120 °C

Customers also searched for pipe clampspipe ringspipe supportsinstalling pipes or connectors.

Choose options

Clamping range - D
  • 60 - 65 mm
  • 73 - 78 mm
  • 88 - 93 mm
  • 219 - 228 mm
  • 244 - 253 mm
  • 267 - 274 mm
  • 325 - 330 mm
  • 454 - 462 mm
Thread connection - M
  • M10, M12
  • M16
Nominal pipe size (imperial)
  • 2 in
  • 2-1/2 in
  • 3 in
Pack size
  • 1 pc
  • 10 pc
  • 25 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 690.21

Technical Data

60290_X03_X04.eps
60290_X01_X02.eps
Approvals
Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A

Documents

Features & Applications

Features

  • Solid connection head, welded all around
  • Strong clamping screws for high load values
  • Non-slip, pre-fitted profiled rubber inlay
  • Suitable for installing pipes under dynamic loading if used with vibration-damping components
  • High resistance to corrosion

Applications

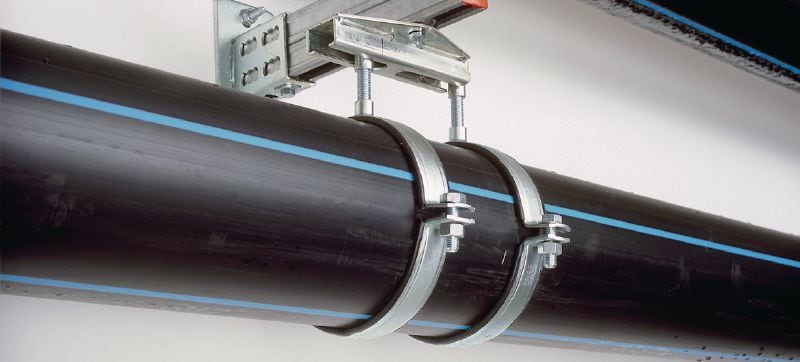

  • heavy-duty pipe installations up to 508 mm
  • Installing industrial pipes
  • Mounting process and control queues
  • heavy-duty plumbing and heating applications
  • Recommended for use in moderately corrosive outdoor and indoor environments

For approval or certificate information, please see individual items.
