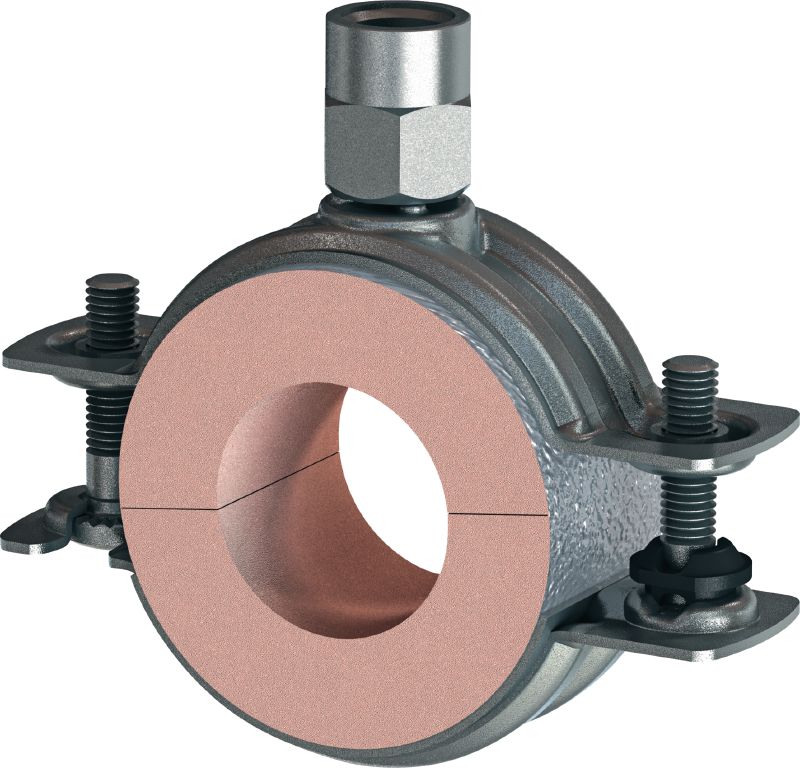

MI-CF LS Refrigeration pipe clamp

Galvanised pipe clamp with load sharing for refrigeration applications with a variety of insulation thicknesses

Approvals: Fire class B2
Temperature resistance: -70 - 120 °C
Material composition: Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil

standard

Thickness - T

Diameter - D

Thread connection - M

Nominal pipe size (imperial)

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 699.47

Approvals

Fire class B2

Temperature resistance

-70 - 120 °C

Material composition

Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Product class

Standard

Diffusion resistance

Impermeable

Thermal conductivity (λ approx. value)

0.03 W/mK

Compressive strength

0.7 N/mm²

Approx. density

80 kg/m³

Simpler and faster pre-fitting of most common pipe sizes due to the two-screw pipe clamp with swivel mechanism
Large pipe diameters with higher loads can be installed with two-screw heavy-duty pipe clamps

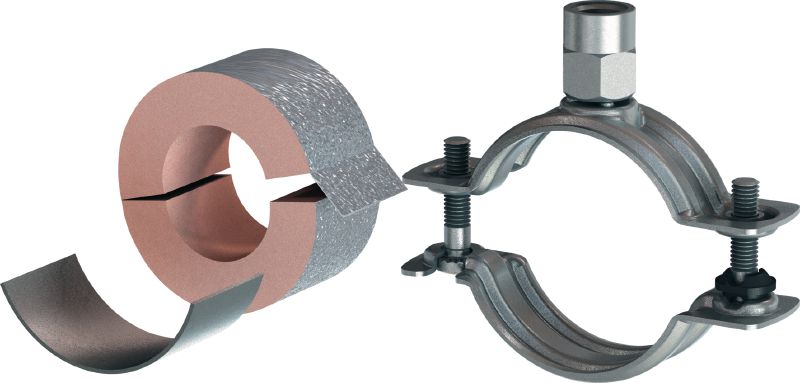

All-in-one parcel – pipe clamp and insulation core – simplifies handling on the jobsite and in the warehouse
Free of H-CFCs or CFCs
Easy initial installation of the pipe thanks to the two-screw pipe ring with pivot mechanism
