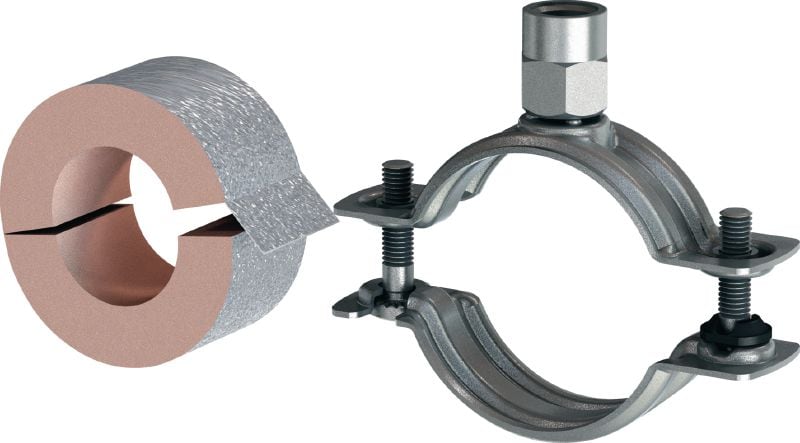

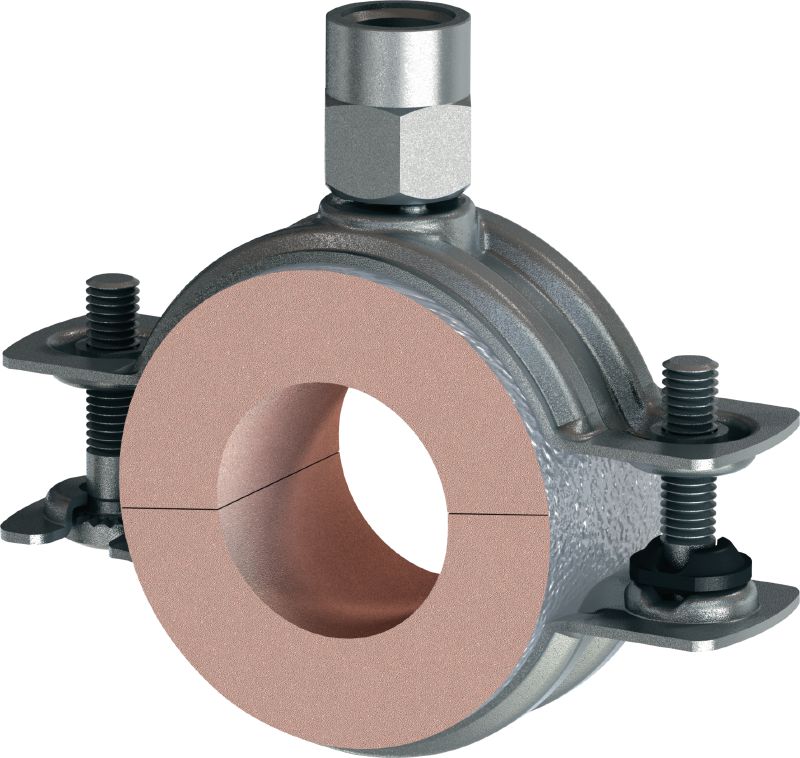

MI-CF LS Refrigeration pipe clamps

Standard galvanized pipe clamp without load sharing for refrigeration applications with a variety of insulation thicknesses

  • Approvals: Fire class B2
  • Temperature resistance: -70 - 120 °C
  • Material composition: Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil

Choose options

Thickness - T
  • 25 mm
  • 30 mm
  • 40 mm
  • 50 mm
Diameter - D
  • 26.9 mm
  • 33.7 mm
  • 42.4 mm
  • 48.3 mm
  • 76.1 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 3/4 in
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2-1/2 in
Pack size
  • 1 pc
  • 8 pc
  • 10 pc
  • 12 pc
  • 20 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 651.78

Technical Data

28509_X18.eps
Approvals
Fire class B2
Temperature resistance
-70 - 120 °C
Material composition
Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Diffusion resistance
Impermeable
Thermal conductivity (λ approx. value)
0.03 W/mK
Compressive strength
0.7 N/mm²
Approx. density
80 kg/m³

Documents

Features & Applications

Features

  • Simpler and faster pre-fitting of most common pipe sizes due to the two-screw pipe clamp with swivel mechanism
  • Large pipe diameters with higher loads can be installed with two-screw heavy-duty pipe clamps
  • All-in-one package – pipe clamp and insulation core – simplifies handling on the jobsite and in the warehouse
  • Free of H-CFCs or CFCs
  • Easy initial installation of the pipe thanks to the two-screw pipe ring with pivot mechanism

Applications

  • Fastening pipes for refrigeration and air conditioning systems
  • Mounting refrigeration pipes in industrial and air conditioning applications

For approval or certificate information, please see individual items.
