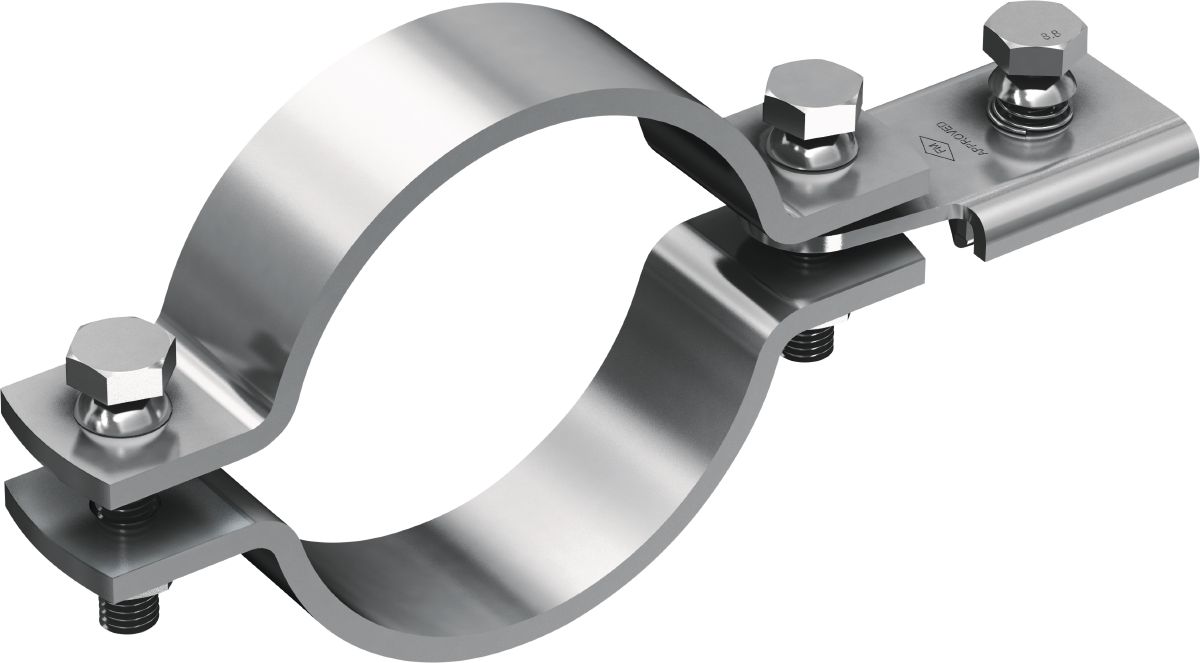

MT-S-SP Seismic sprinkler pipe clamp

Galvanised sprinkler pipe clamp with FM approval for seismic bracing in fire sprinkler applications

  • Material composition: S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
  • Surface finish: Indoor Coated - Electro galvanised
  • Clamping screw: M12

Choose options

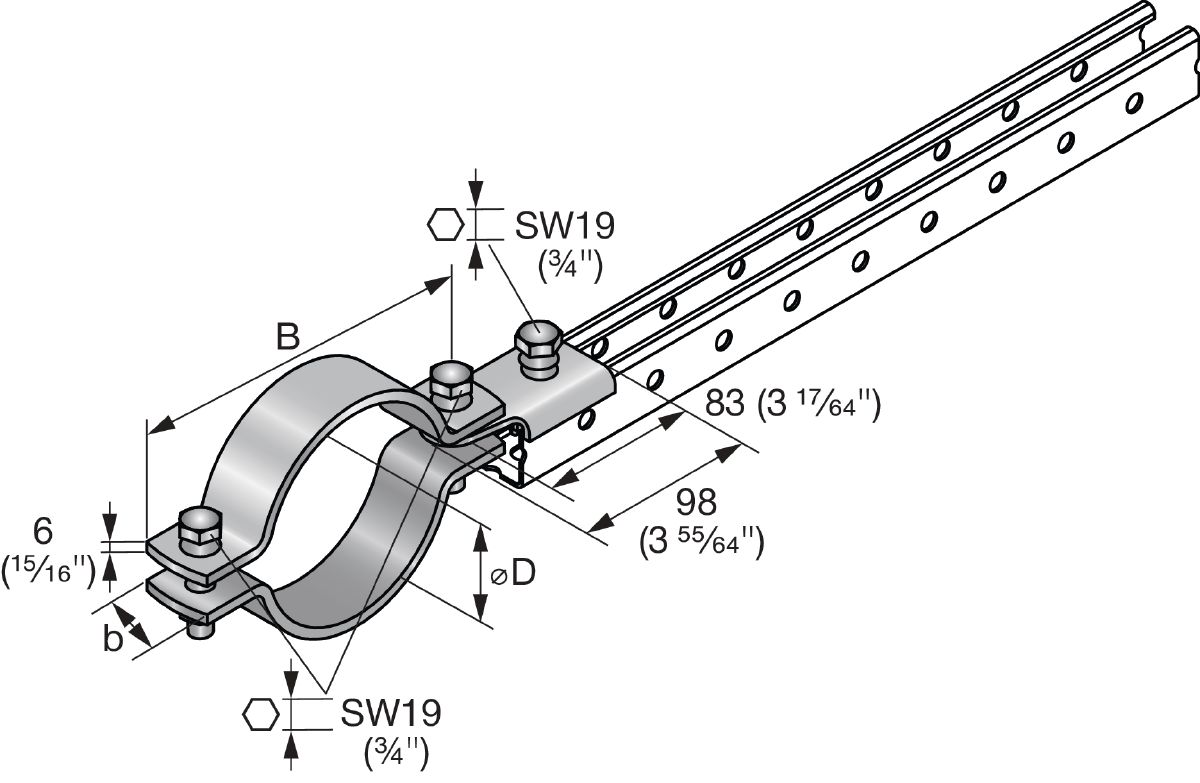

Clamping range - D
  • 60 - 65 mm
  • 73 - 78 mm
  • 88 - 93 mm
  • 108 - 116 mm
  • 134 - 142 mm
  • 162 - 170 mm
  • 213 - 221 mm
  • 267 - 275 mm
  • 318 - 326 mm
Nominal pipe size (imperial)
  • 2 in
  • 2.5 in
  • 3 in
  • 4 in
  • 5 in
  • 6 in
  • 8 in
  • 10 in
  • 12 in
Nominal pipe size
  • 50 mm
  • 65 mm
  • 80 mm
  • 100 mm
  • 125 mm
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
Pack size
  • 5 pc
  • 10 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Material composition
S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanised
Clamping screw
M12

Documents

Features & Applications

Features

  • Faster installations – pre-assembled MT Fast-Lock mechanisms and shear-off bolt heads enable our fastest method for assembling seismic bracing for fire sprinkler pipes
  • Simpler installations and inspection – shear-off bolt head design allows you to quickly instal and confirm correct installations at a glance
  • Higher load capacity – engineered to optimise the transfer of seismic loads, helping reduce the total cost of installation
  • Versatile – universal seismic sprinkler pipe clamps can be used in both longitudinal and transversal bracing applications and help simplify stock management
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Seismic approved (FM) bracing of fire sprinkler pipes
  • Attaching pipes for longitudinal or transversal brace assembly
  • For use in combination with MT modular support systems and MT-S-SP C seismic connectors
  • Suitable for use in dry indoor environments

For approval or certificate information, please see individual items.
