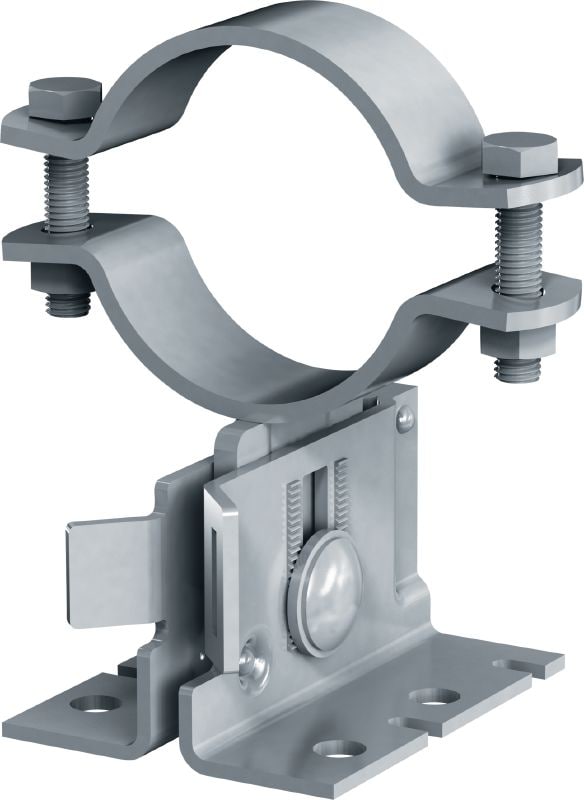

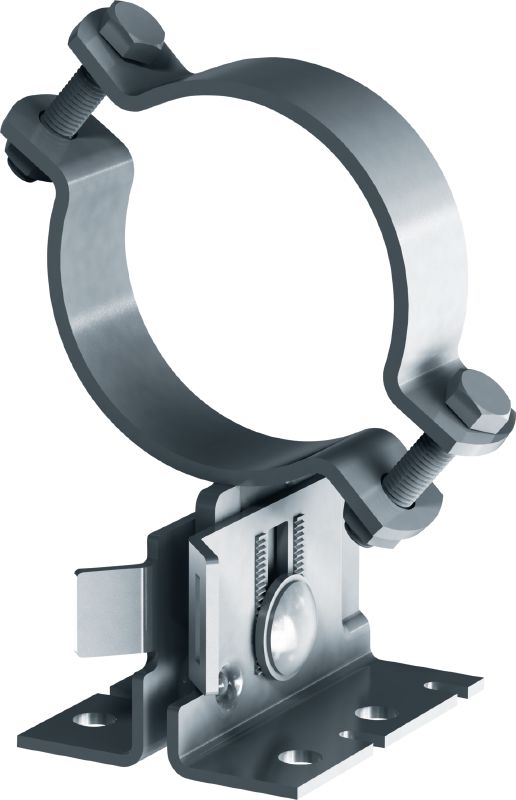

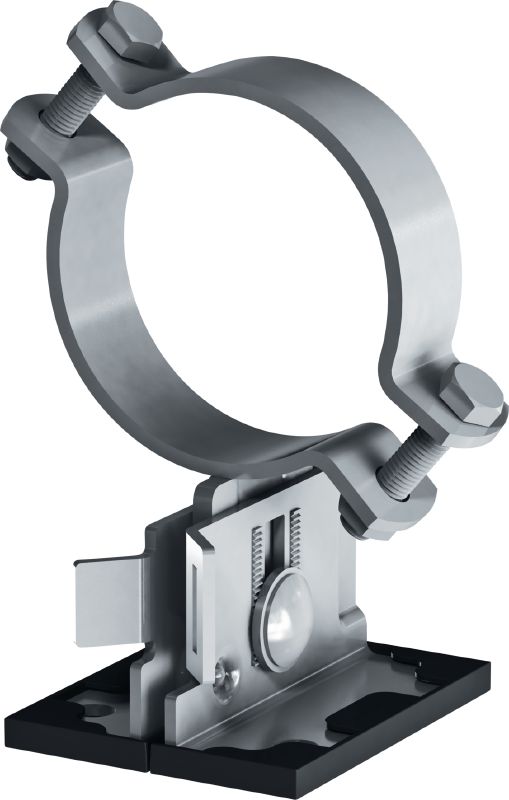

MP-PS 1-1 pipe shoe

Pipe shoe MP-PS L1-1 125-133 OC #2330934

Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 21-173 mm (1/2" to 6")

  • Clamping range - D: 125 - 133 mm
  • Fire resistance (yes/no): No
  • Temperature resistance: -20 - 300 °C

Choose options

Clamping range - D
  • 125 - 133 mm
Height above ground to base of pipe
  • 88.5 - 116 mm
Pack size
  • 4 pc
Product options
Quantity
Packs
Total Piece
4
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

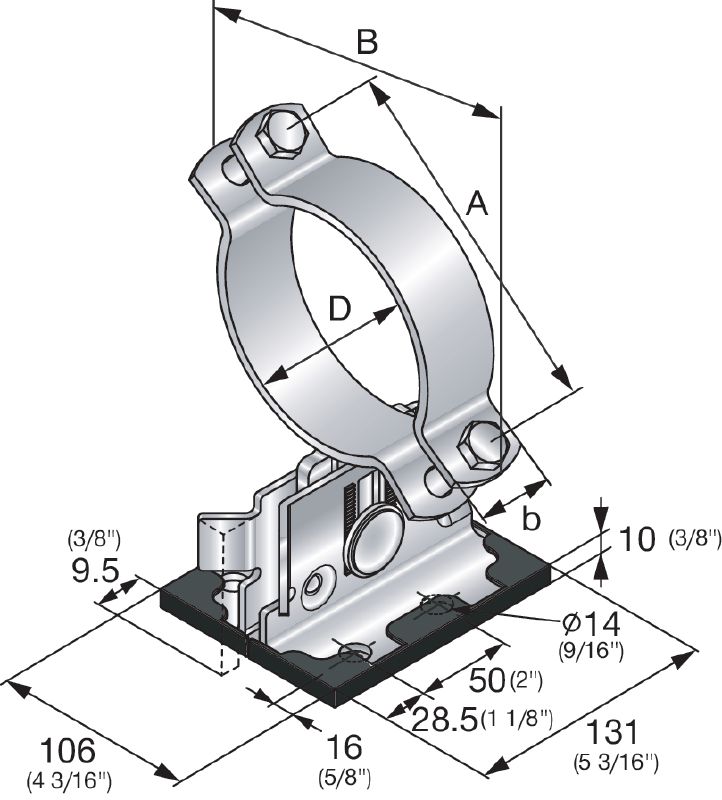

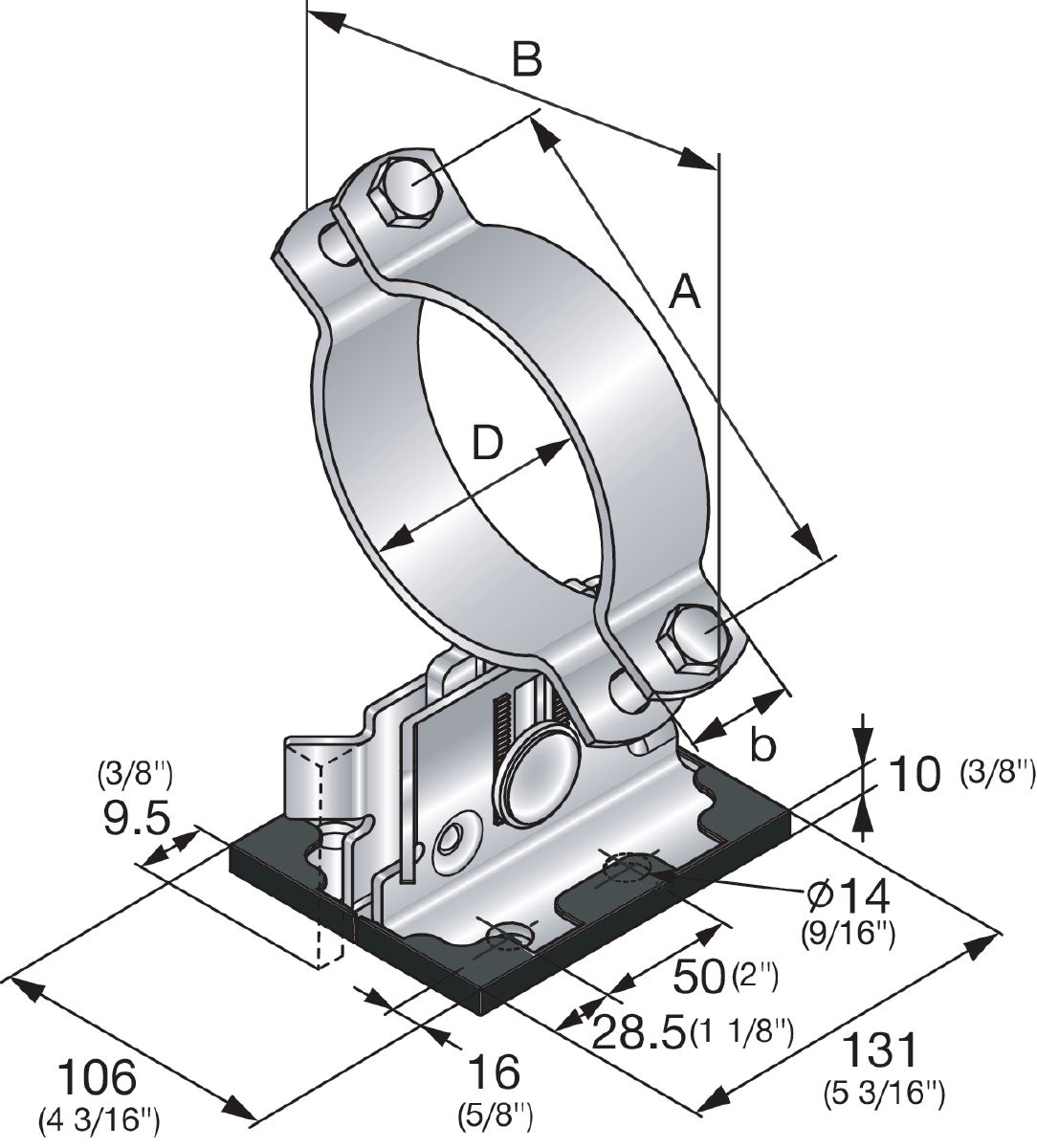

IS_MP-PS L1-1_0002_schwarz (229469)

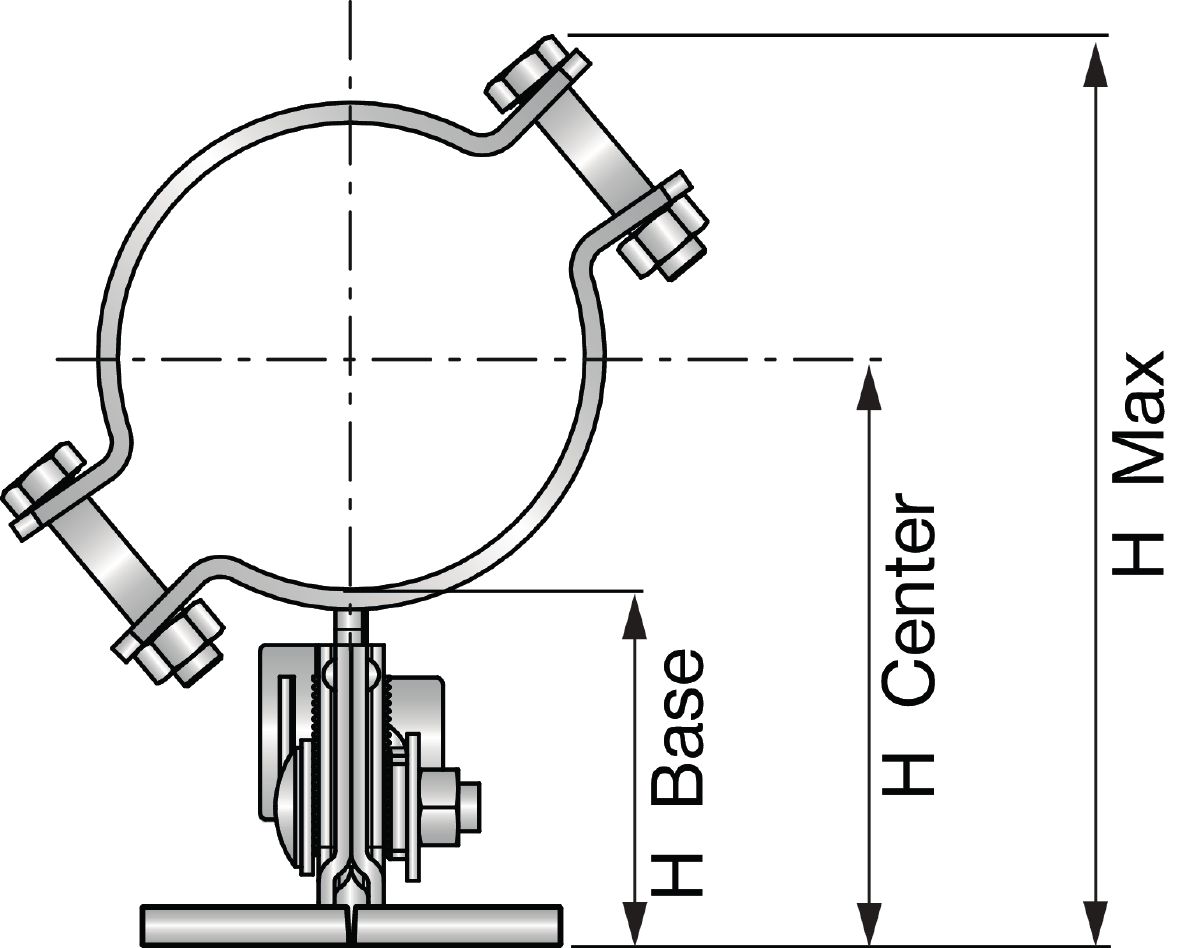

IS_MP-PS front_0002 (229468)
Clamping range - D
125 - 133 mm
Fire resistance (yes/no)
No
Temperature resistance
-20 - 300 °C
Material composition
Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
base-plate: 4mm, Middle-plate: 7mm, Sliding-plate: 3mm, Serrated washer: 4mm
Surface finish
Outdoor Coated - HDG
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Clamping screw
M12x60
Tightening torque
50 Nm
Wrench size
19 mm
Tightening torque for height adjustment
50 Nm
Cross section width - b
40 mm
Cross section thickness - s
5 mm
Cross section width and thickness (b x s)
40 x 5 mm
Height - H
242 mm
Height above ground to base of pipe
88.5 - 116 mm
Height above ground to base of pipe min.
88.5 mm
Height above ground to base of pipe min. (conversion inch fractional)
3-1/2 in
Height above ground to base of pipe max.
116 mm
Height above ground to base of pipe max. (conversion inch fractional)
4-9/16 in
Height above ground to center of pipe
155 - 182.5 mm
Height above ground to center of pipe min.
155 mm
Height above ground to center of pipe min. (conversion inch fractional)
6-1/8 in
Height above ground to center of pipe max.
182.5 mm
Height above ground to center of pipe max. (conversion inch fractional)
7-3/16 in
Width - B
195 mm
Length
141 mm
Weight
2.13 kg

Documents

Features & Applications

Features

  • One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
  • Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
  • Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
  • Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place
  • Wider clamping range – suitable for various different pipes with or without additional inlays

Applications

  • Fastening pipes to steel beams, concrete or Hilti modular support girders
  • Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
  • Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm
  • Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)
