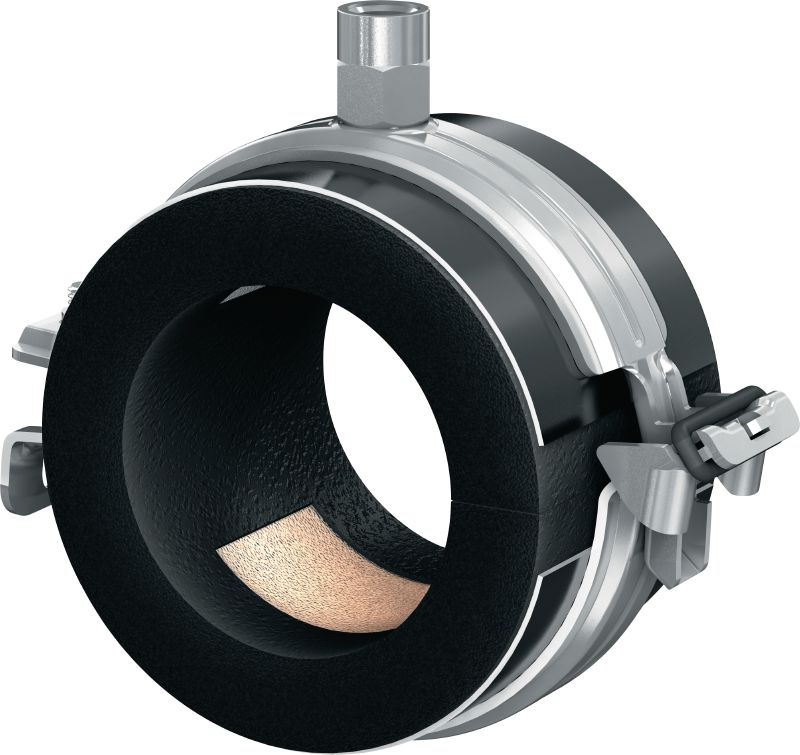

MIP-H Refrigeration pipe clamp (thin insulated)

Refrig. pipe ring MIP-H/15-18 #314127

Galvanised pipe clamp for maximum productivity in refrigeration applications with an insulation thickness of 13-16 mm

  • Clamping range - D: 15 - 18 mm
  • Nominal pipe size (imperial): 3/8 in
  • Thread connection - M: M8, M10
ultimate

Choose options

Clamping range - D
  • 15 - 18 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 3/8 in
Pack size
  • 16 pc
Product options
Quantity
Packs
Total Piece
16
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 2,334.78

AED 145.92 / 1 Piece

Technical Data

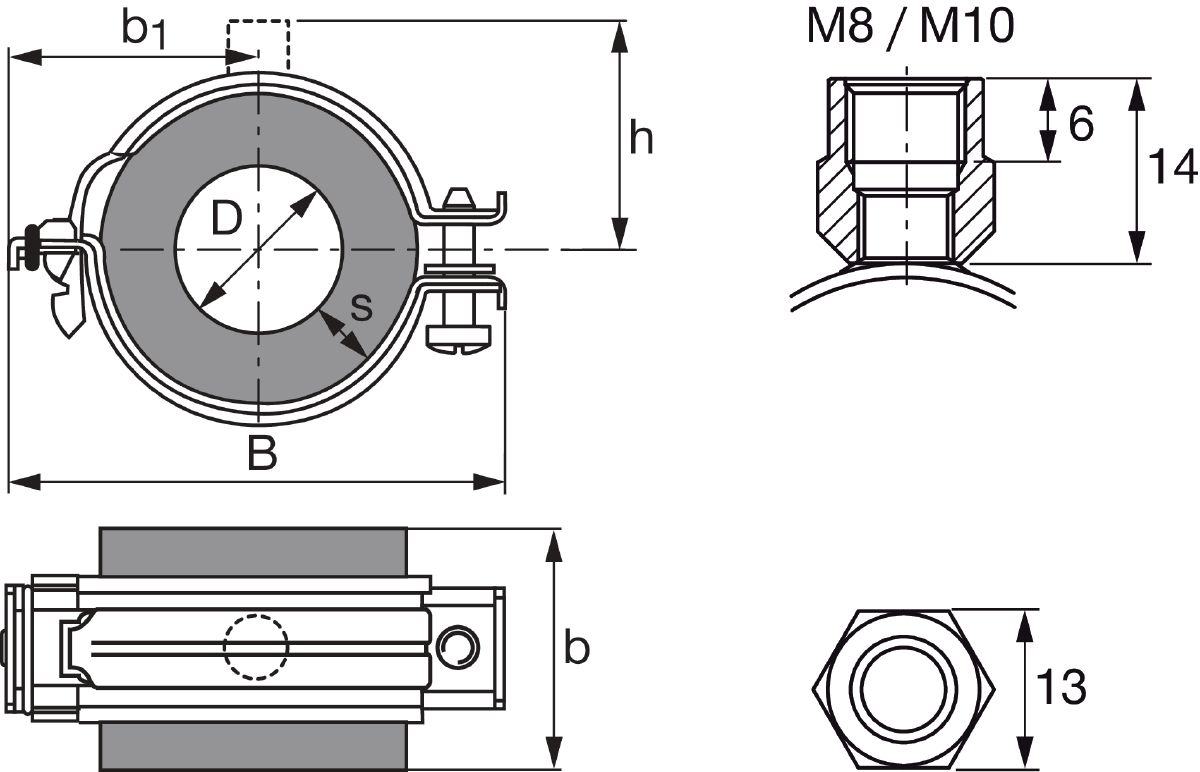

IS_PR_0009_A1.eps
Clamping range - D
15 - 18 mm
Nominal pipe size (imperial)
3/8 in
Thread connection - M
M8, M10
Maximum load - F
50 N
Approvals
Fire class B2
Noise reduction
19 dB (A)
Temperature resistance
-40 - 105 °C
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
13 mm
Cross section width - b
45 mm
Width - B
80 mm
Product class
Ultimate
Distance centre pipe to top - h
45 mm
Max. extension from centre - b1
41 mm
Diffusion resistance
≥ 10000
Thermal conductivity (λ approx. value)
0.036 W/mK
Approx. density
145 kg/m³

Documents

Features & Applications

Features

  • Designed for standard insulation thicknesses (insulation material: elastomeric caoutchouc)
  • Continuous joint between refrigeration pipe clamp and pipe insulating material (elastomeric caoutchouc)
  • Thermally decoupled system with integrated vapour (diffusion) barrier to help prevent thermal short circuits

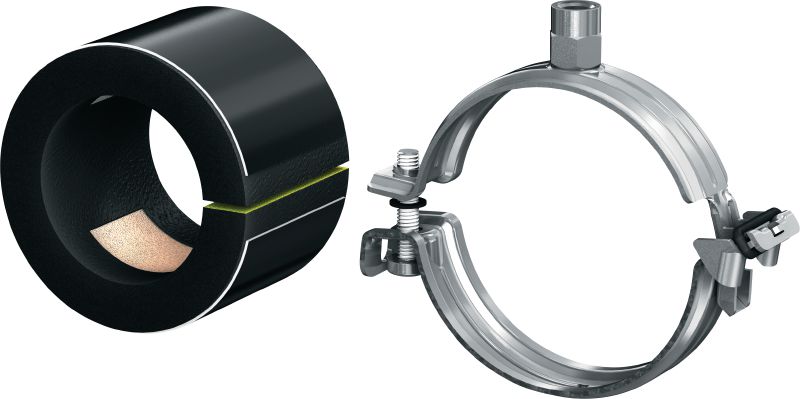

  • Assembly of the insulation core with a handle thanks to the self-adhesive closure
  • Three-stage quick closure with only one screw up to 140 mm; from 159 mm and larger two-screw closure

Applications

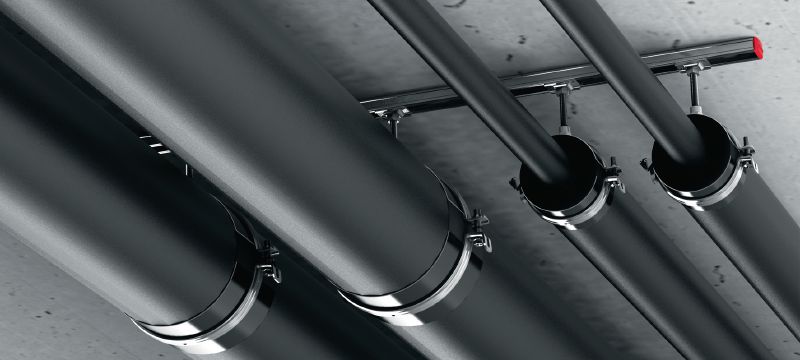

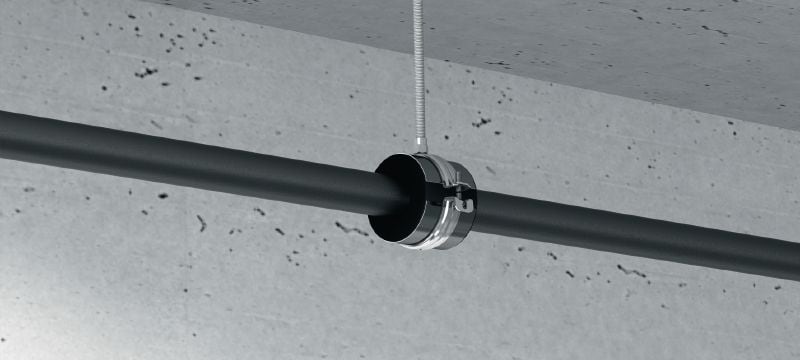

  • Mounting pipes up to 169 mm diameter in refrigeration and air conditioning applications
  • Applications where easy fitting of the insulating unit is required
  • No sealants required
