MP-HI Quick-close light-duty pipe clamp

Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications

  • Approvals: Acustic insulaton DIN 4109 inspected, ETA, Fire class B2
  • Noise reduction: 17 dB (A)
  • Temperature resistance: -40 - 110 °C
premium

Customers also searched for pipe clampspipe ringspipe supportsinstalling pipes or connectors.

Technical Data

MP-HI Residential pipe rings
Approvals
Acustic insulaton DIN 4109 inspected, ETA, Fire class B2
Noise reduction
17 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
45° ±5° Shore A
Product class
Premium

Documents

Features & Applications

Features

  • Two-screw pipe clamp with side swiveling mechanism
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Click closure for easier and faster pre-fixing
  • Adhesive-bonded acoustic insulation inlay – helps to prevent drop-out during installation
  • Welded M8/M10 double connection head for more flexibility

Applications

  • Light-duty pipe installations up to 6" (or 172mm)

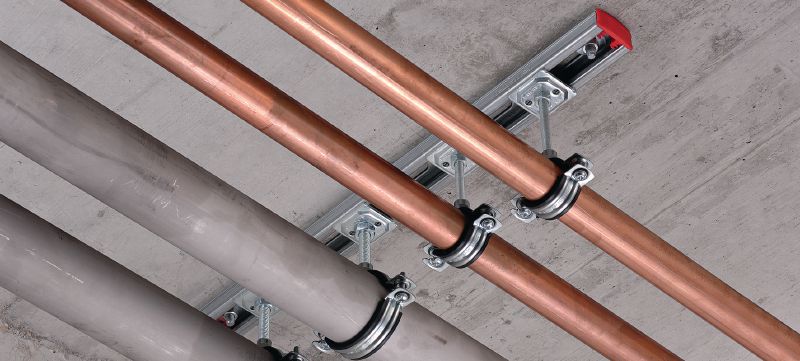

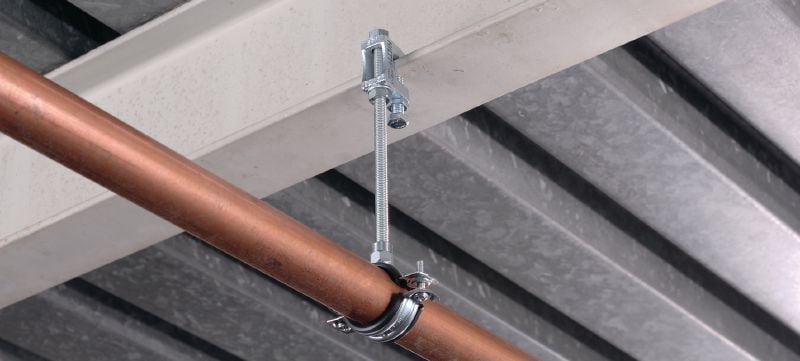

  • Fastening fresh water, waste water and heating pipes
  • Sanitary, heating and gas applications with pipes of various materials
  • Recommended for use in dry, interior environments
  • Fastening drinking water pipes and heating pipes in residential and industrial construction

For approval or certificate information, please see individual items.
