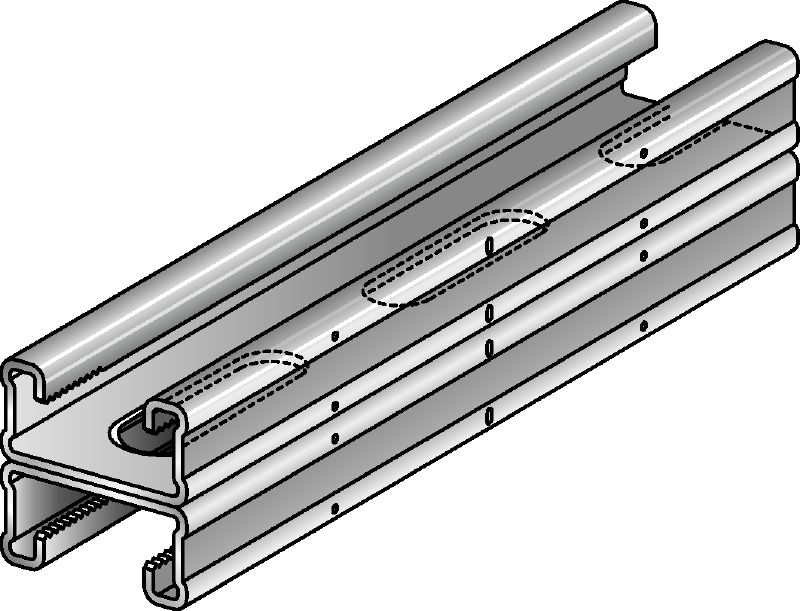

hot-dip galvanised (HDG plus) double C-Channel profile for medium-duty applications

  • Height: 41.2 mm
  • Material thickness: 2 mm
  • Material composition: S235JR - DIN EN 10025

Customers also searched for pipe supportscable tray supportsventilation duct supportsfastening supports or installation channel.

Technical Data

14668.eps
Height
41.2 mm
Material thickness
2 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Installation on both sides possible – for high application flexibility
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in moist interiors, outdoor areas exposed to slight or no weathering and for ventilated facades
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation

For approval or certificate information, please see individual items.
