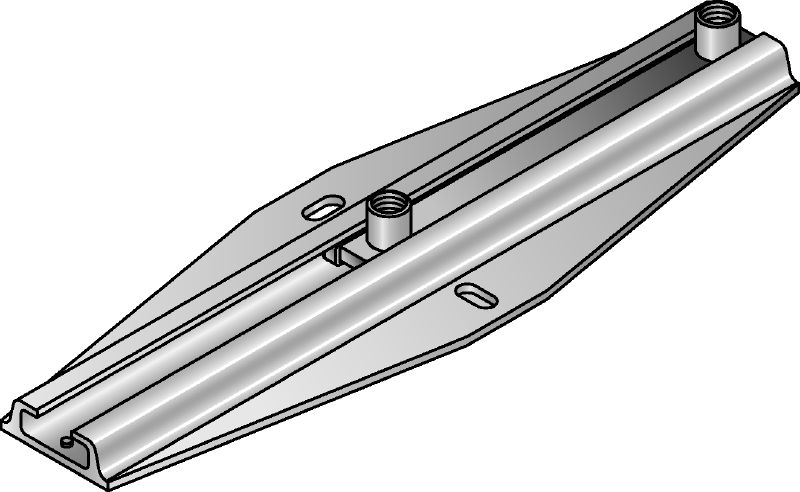

MSG-D 200 1,5 slide connector

Slide connector MSG-D 200 1,5 M12/M16 #2171849

Galvanised slide connector for medium-duty heating and refrigeration applications

Thread connection - M: M12, M16
Height - H: 36 mm
Maximum load - F: 1.5 kN

Choose options

Thread connection - M

M12, M16

Height - H

36 mm

Maximum load - F

1.5 kN

Pack size

2 pc

Product options

Quantity

Packs

Total Piece

You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

7 Packs (Total pieces 14)

Ex Vat and Packaging/Forwarding charges

AED 12,427.00

AED 887.64 / 1 Piece

Technical Data

Thread connection - M

M12, M16

Height - H

36 mm

Maximum load - F

1.5 kN

Material composition

EN AW-6063 T6

Surface finish

n/a

Temperature resistance

-40 - 100 °C

Base material type

Concrete, Steel, Wood

Max. displacement

200 mm

Coefficient of sliding friction

0.1

Weight

1.66 kg

Documents

Features & Applications

Features

Can be used for suspended or standing installation applications
Load classes and capacities matched to Hilti pipe clamps
Stiffened base plate fits MQ modular support system
Smooth sliding movement on integrated plastic guide

Applications

Mounting pipes subject to thermal elongation and contraction
Recommended for installation of plastic pipes up to DN 250
