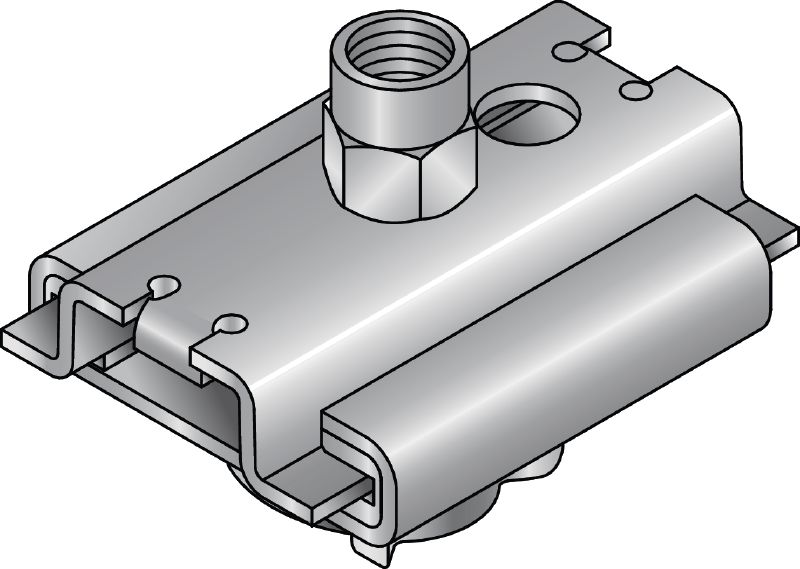

MSG-MQ 0,6 slide connector
Galvanised slide connector for light-duty heating and refrigeration applications
- Material composition: S275JR - EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M8, M10
Height - H
- 33 mm
Maximum load - F
- 0.6 kN
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 1,024.84
Technical Data
Material composition
S275JR - EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 130 °C
Base material type
Steel
Coefficient of sliding friction
0.1
Documents
Features & Applications
Features
- Can be used for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened base plate fits MQ modular support system
- Can be positioned and adjusted easily along the strut channel
- Fits all types of MQ channels
Applications
- Mounting pipes subject to thermal elongation and contraction
- For use in combination with modular support systems
For approval or certificate information, please see individual items.
