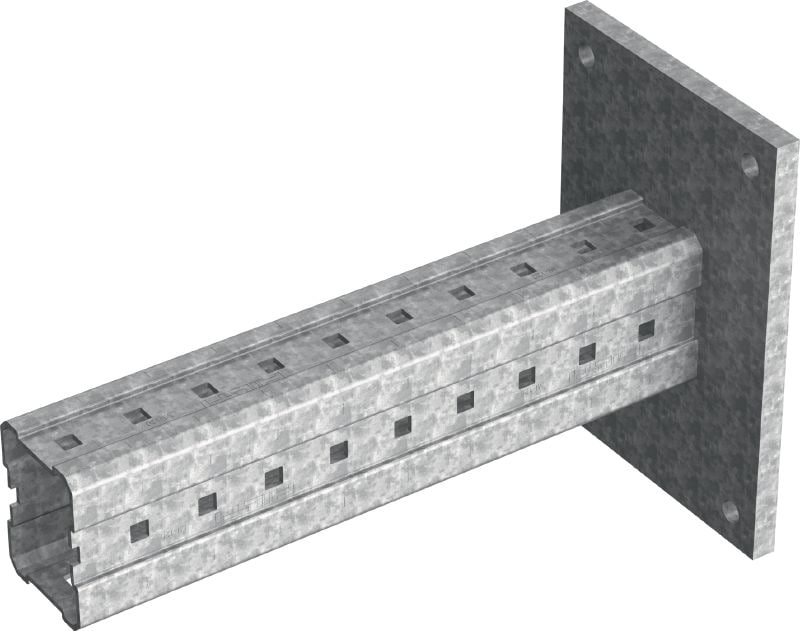

hot-dip galvanised (HDG) box profile bracket for connections to concrete in heavy-duty applications

  • Material composition: Hot-dip galvanised acc. to DIN EN ISO 1461
  • Surface finish: HDG: min 55 µm
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

IS_MIC-C120-Bracket_EU_0001 (191173)
Material composition
Hot-dip galvanised acc. to DIN EN ISO 1461
Surface finish
HDG: min 55 µm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Low weight for easier installation – no lifting devices needed
  • Engineered to provide extra-high moment capacity
  • Designed for fast, one-person installation for heavy- duty applications

Applications

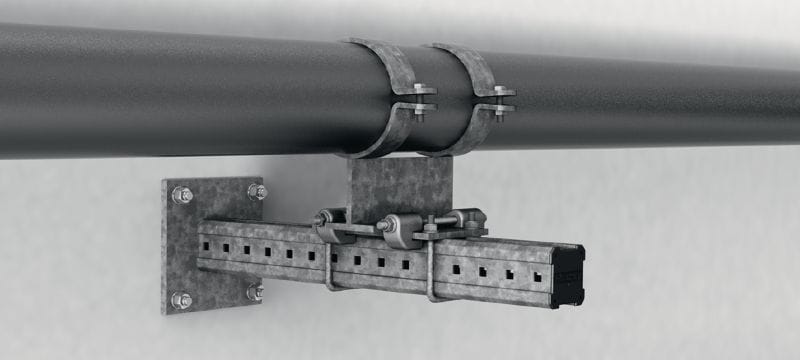

  • Part of a modular system for supporting cable trays, pipes and miscellaneous secondary steel
  • Fastening to concrete ceilings, walls and floors
  • Cantilevers or other applications requiring an extra-high moment capacity

For approval or certificate information, please see individual items.
