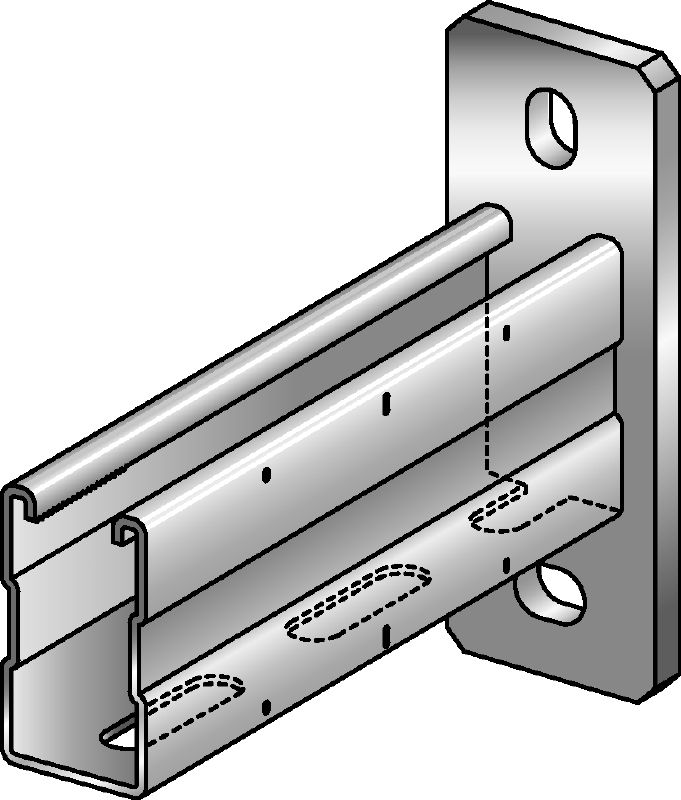

hot-dip galvanised (HDG) C-Channel bracket for medium-duty applications

  • Material thickness: Channel: 2.75 mm, Baseplate: 10 mm
  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG

Technical Data

14705.eps
IS_HNA_203.eps
Material thickness
Channel: 2.75 mm, Baseplate: 10 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Profile
MQ-72-F

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Single channel, slotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Installations in ventilated façades, damp interiors and outdoor areas with little or no exposure to the weather
  • Installing cable trays, air ducts and pipe supports
  • Recommended for use in moderately corrosive outdoor and indoor environments

For approval or certificate information, please see individual items.
