Rugged field tablet for layout applications

  • IP protection class: IP 65 (EN 60529)
  • Maximum operating time: 8 h
  • Battery type: Li-ion

Technical Data

IP protection class
IP 65 (EN 60529)
Maximum operating time
8 h
Battery type
Li-ion
Charging time
4.5 h
Operating temperature range
-20 - 50 °C
Weight
0.55 kg

Documents

Features & Applications

Features

  • Layout directly in 2D or 3D from CAD and BIM data for an effective workflow
  • One common hardware and software platform to operate all Hilti robotic stations

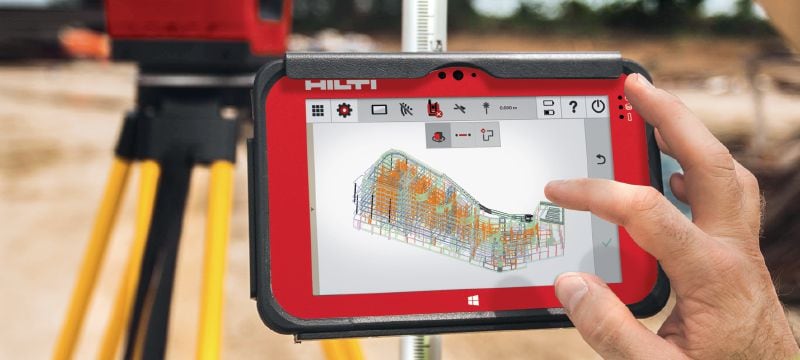

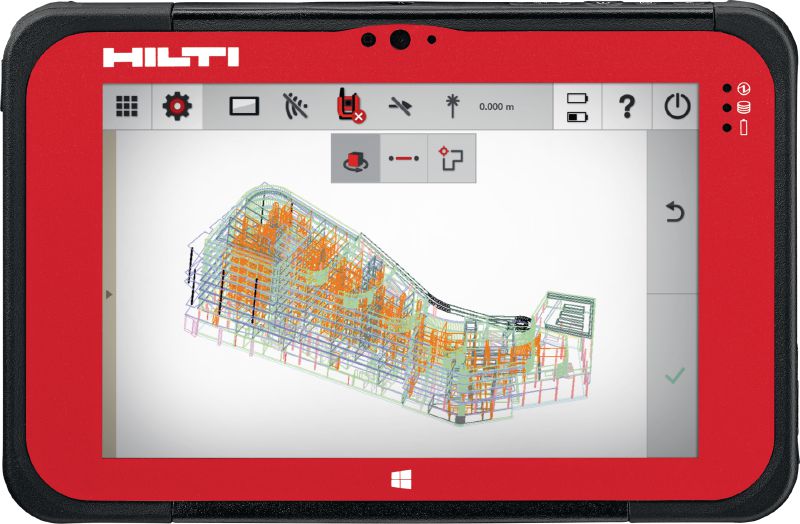

  • Rugged tablet with 7" display designed to withstand tough jobsite conditions
  • Intuitive Hilti Construction Layout software for jobsite layout and measuring tasks

Applications

  • Layout of 2D and 3D points and lines directly from CAD and BIM data
  • Transferring heights in flat-plane, single-slope or dual-slope mode
  • Measuring existing features and performing as-built for documentation
  • The data transfer via integrated Cloud access increases productivity and makes layout data available to your jobsite immediately
  • The remote support allows a specialist to directly support the user by direct visual interaction on the tablet screen

For approval or certificate information, please see individual items.
