Nuron

PR 40G-22 Single slope green rotating laser level

Configurator
Technical Data
Features & Applications
Related Products
L133769 (3551246)
L149442_cropped (3531485)
L149448_cropped (3531484)
L149460_cropped (3531483)
L151935_cropped (3620805)

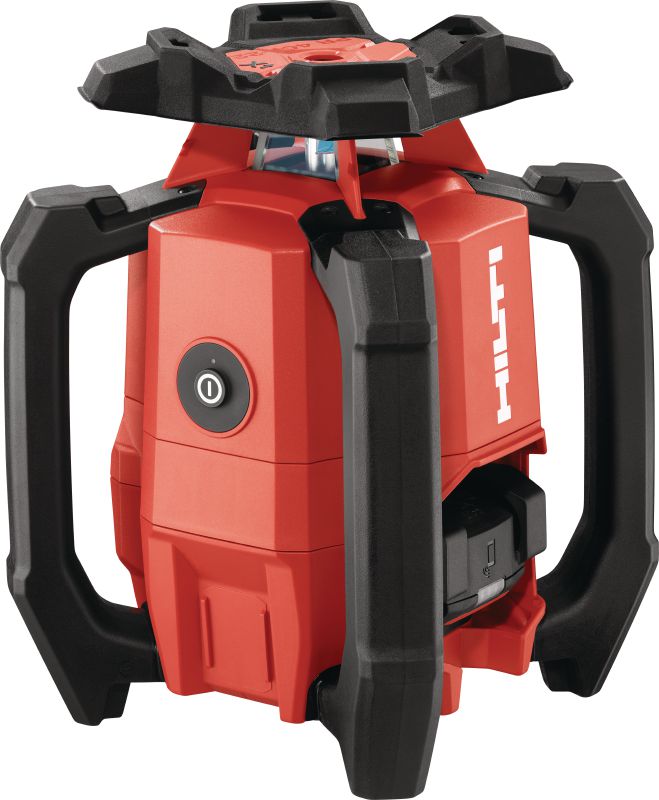

Robust interior rotary laser level with highly visible green beam and automatic functions for leveling, aligning, sloping and squaring (Nuron platform)

  • Accuracy: ±1.5 mm at 30 m
  • Laser class: <4.85 mW, 510-530 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
  • Self-levelling range at room temperature: ±5(±8.7%) °

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Accuracy
±1.5 mm at 30 m
Laser class
<4.85 mW, 510-530 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self-levelling range at room temperature
±5(±8.7%) °
Inclination setting X-axis - range
-15 - 8.6 %
Rotation speed
300, 600, 1000
IP protection class
IP 66 (EN 60529) - battery compartment excluded
Operating temperature range
-20 - 50 °C
Maximum operating time
35 h

Features & Applications

Features

  • Easy to use – one button design enables one-person operation, allowing you to set automatic functions within 300m (diameter)
  • 2-in-1 laser remote/receiver – universal PRA 400 detects rotating laser beams up to 300m, displays digital offset values and controls automatic functions of your rotary laser, helping you complete advanced indoor layouts
  • Faster workflows – automatic vertical alignment, digital slope entry and cheque slope features help simplify and speed up your layout application
  • Durable and drop-resistant – new aluminium core, internal dampers, shock-absorbing head/handles and IP66 rating to help maintain laser accuracy in rough jobsite conditions
  • Smarter features with Nuron – smart asset tracking, battery life indication and all on one battery platform help keep your tool park streamlined and cost-efficient

Applications

  • Horizontal leveling – suspended ceilings, raised floors, transferring heights
  • Vertical aligning – plasterboard, pipe runs, cable trays, ducts etc.
  • Squaring for partition wall applications
  • Sloping – inclined interior ceilings, handrails, pipes etc

For approval or certificate information, please see individual items.
