PR 40-22 Single slope rotating laser level

Robust exterior rotary laser level with automatic functions for long-distance leveling, aligning, sloping and squaring (Nuron battery platform)

  • Accuracy: ±1.5 mm at 30 m
  • Laser class: <4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
  • Self-levelling range at room temperature: ±5(± 8.7%) °

Technical Data

Accuracy
±1.5 mm at 30 m
Laser class
<4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self-levelling range at room temperature
±5(± 8.7%) °
Inclination setting X-axis - range
-15 - 8.6 %
Rotation speed
300, 600, 1000 rpm
IP protection class
IP 66 (EN 60529) - battery compartment excluded
Operating temperature range
-20 - 50 °C
Maximum operating time
35 h

Documents

Features & Applications

Features

  • Easy to use – one button design enables one-person operation, allowing you to set automatic functions within 300m (diameter)
  • 2-in-1 laser remote/receiver – universal PRA 400 detects rotating laser beams up to 800m, displays digital offset values and controls automatic functions of your rotary laser, helping you complete advanced layouts
  • Faster workflows – automatic vertical alignment, digital slope entry and cheque slope features help simplify and speed up your layout applications
  • Durable and drop-resistant – new aluminium core, internal dampers, shock-absorbing head/handles and IP66 rating to help maintain laser accuracy in rough jobsite conditions
  • Smarter features with Nuron – smart asset tracking, battery life indication and all on one battery platform help keep your tool park streamlined and cost-efficient

Applications

  • Horizontal leveling – formwork, concrete pours, excavation, height transfer etc.

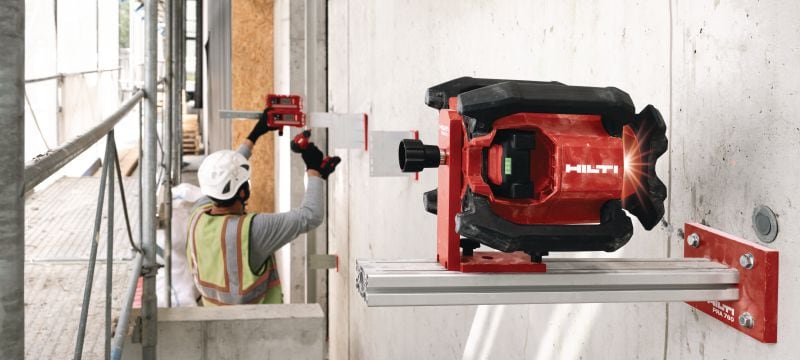

  • Vertical aligning – transferring building queues, aligning columns, façades, vertical formwork, etc.

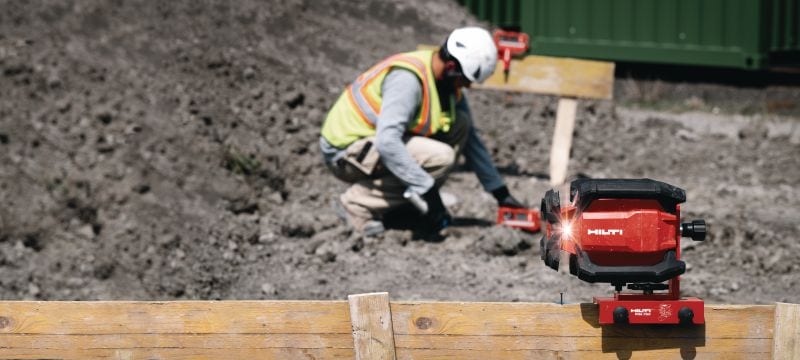

  • Slope/ grading for ramps, car parks and pipes
  • Squaring for formwork applications

For approval or certificate information, please see individual items.
