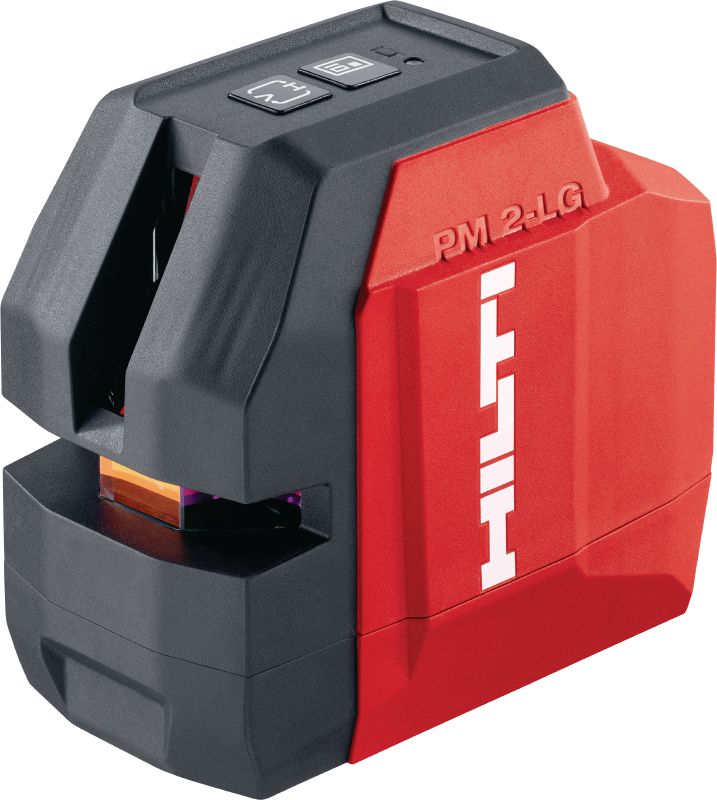

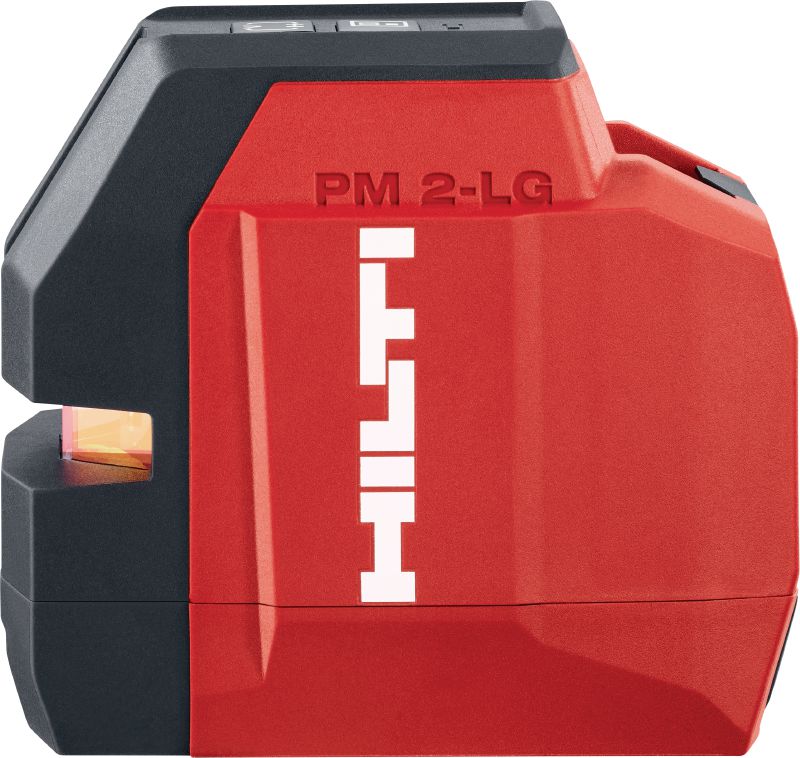

PM 2-LG Green line laser

Line laser PM 2-LG #2322754

Configurator
Technical Data
Documents
Features & Applications
Related Products
L128276_v1 (2290236)
L128276 (2290226)
L128279 (2290266)
L146216_cropped (2415191)
L146227_cropped (2415145)

Green line laser with 2 high-visibility beams for levelling and aligning

  • Accuracy: ±3 mm at 10 m
  • Max. operating distance (diameter): 40 m (Lines), 100 m (Lines, with receiver)
  • Maximum operating time: 8 h

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 1,560.83
AED 1,560.83 / 1 Piece

Technical Data

Accuracy
±3 mm at 10 m
Max. operating distance (diameter)
40 m (Lines), 100 m (Lines, with receiver) 1
Maximum operating time
8 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
+/-4 °
Self-levelling time
3 s
Horizontal fan angle
200 °
Vertical fan angle
160 °
IP protection class
IP 54 (EN 60529)
Laser type
Line
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PM 2-LG (02), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 6.6 MB ]

Features & Applications

Features

  • Better visibility for better productivity – green line lasers give you a beam which is 4x easier to see than red lasers in indoor environments, so you can work over much longer distances without stopping to relocate the laser

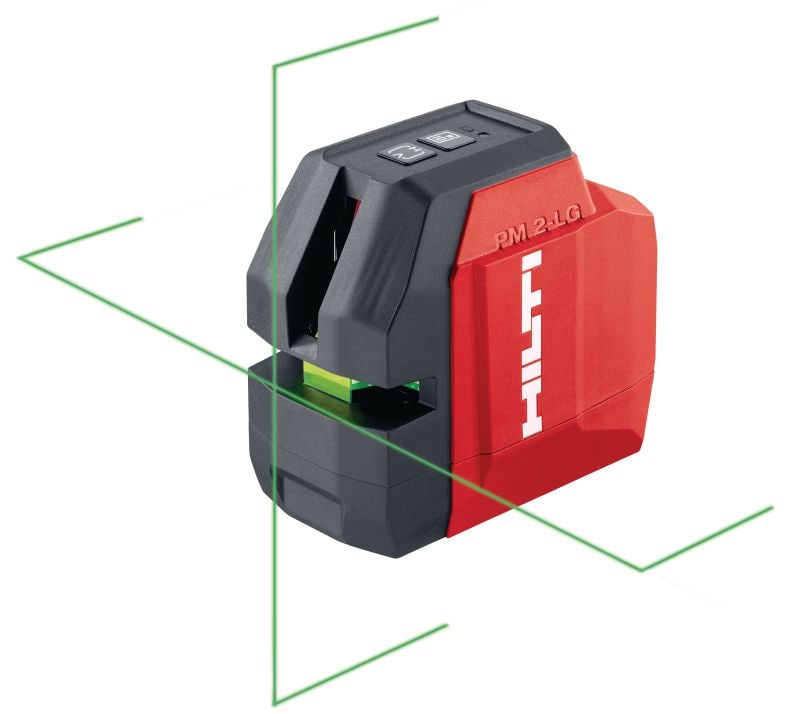

  • Extreme ease of use – one button to toggle vertical/horizontal/cross lines, one button to activate the receiver
  • Slope mode – you can lock the self-levelling pendulum so this line laser can be used for straight lines at any angle (optional PMA 93 crab clamp recommended)
  • Practical and durable design – compact housing with rubber bumpers to better withstand jobsite conditions, and Class 2 laser requiring no special precautionary measures for use
  • Low battery alert – better avoid unexpected downtime by finding out in advance when your line laser needs new batteries

Applications

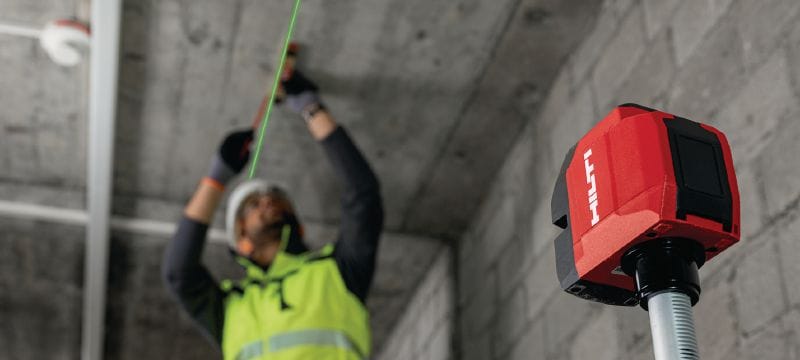

  • Aligning plasterboard studwork/track
  • Levelling suspended ceilings

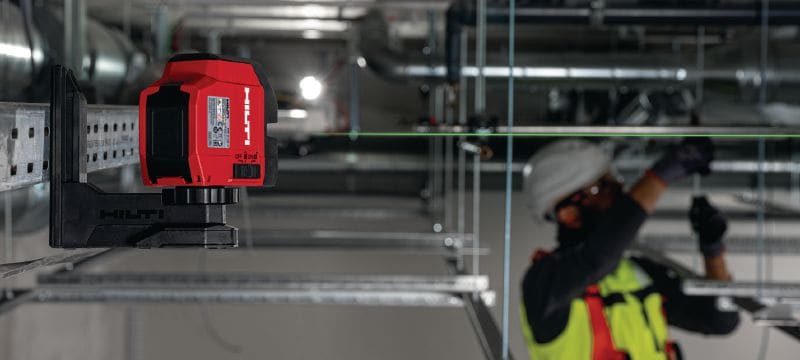

  • Levelling and aligning pipes and cables
  • Levelling and aligning doors and windows
  • Transferring heights
