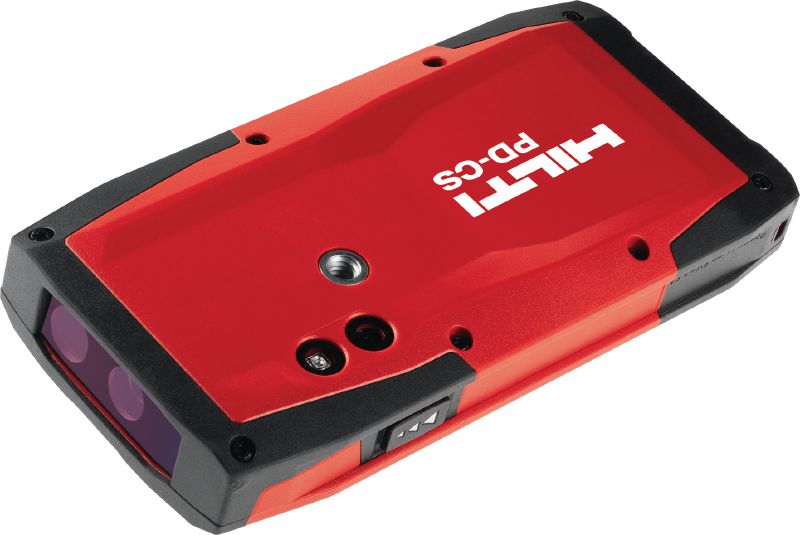

Ultimate laser meter with Wi-fi and built-in camera for documenting measurements up to 200 m / 650 ft

  • Measuring range: 0 m - 200 m
  • Measurement accuracy: 1.0 mm
  • Measuring functions: Single and continuous measurement, Digital level

Technical Data

Measuring range
0 m - 200 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Digital level
Calculation functions
Area, Volume, Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x), Addition, Subtraction, Offset, Timer, Min/max
Data memory
Internal flash memory
Maximum operating time
10 h
Battery type
Li-ion
Laser class
<1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 54 (EN 60529)
Interface
Bluetooth, USB, WiFi

Features & Applications

Features

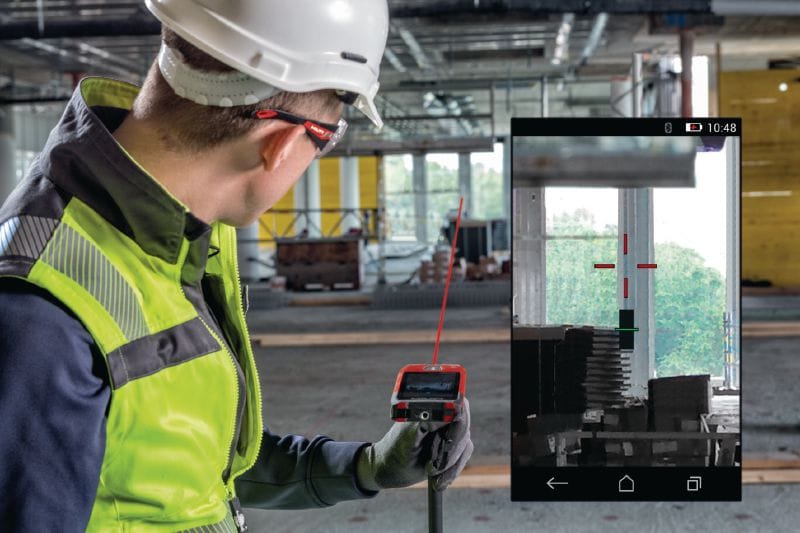

  • Built-in target camera to easily position the laser point outdoors
  • Save thousands of measuring results with the 8 GB built-in memory – streamlines the recording of survey data and reduces opportunities for mistakes
  • Export measurements to a report (PDF), spreadsheet (CSV) or photo (JPG) for easy and efficient documentation production

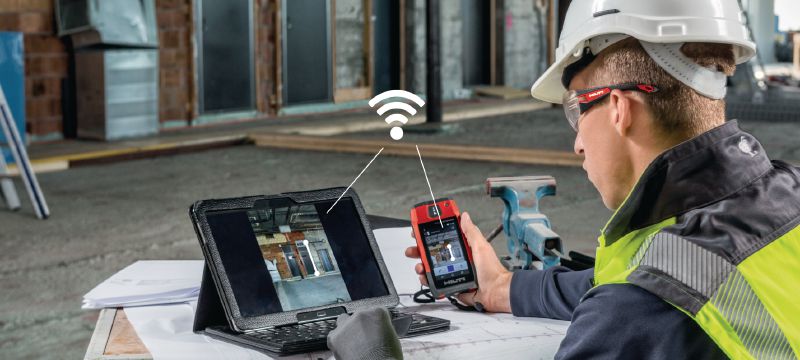

  • Wi-Fi, Bluetooth and USB interface – instantly send measurements to colleagues and other devices from anywhere

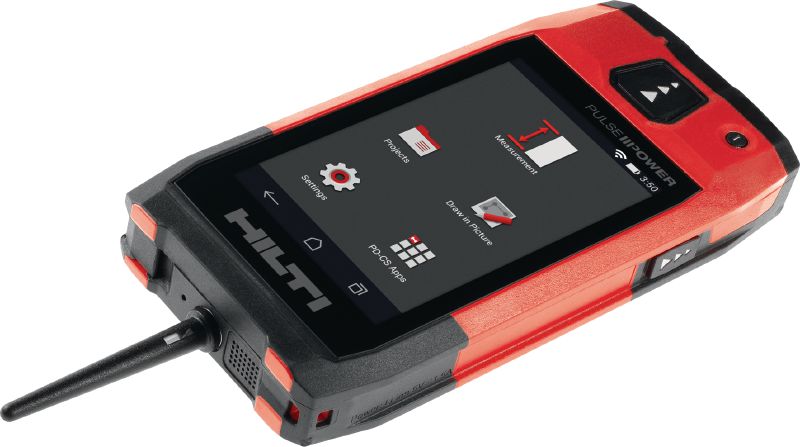

  • User-friendly Android touchscreen menus for intuitive navigation

Applications

  • Clear documentation of measurements while making a quotation to win a job, or for purchasing materials
  • Preparing documentation of quality checks to ensure work was fully completed to specification or for listing faults that need to be fixed
  • Checking a repeated series of measurements requiring many measurements, such as formwork heights or railings

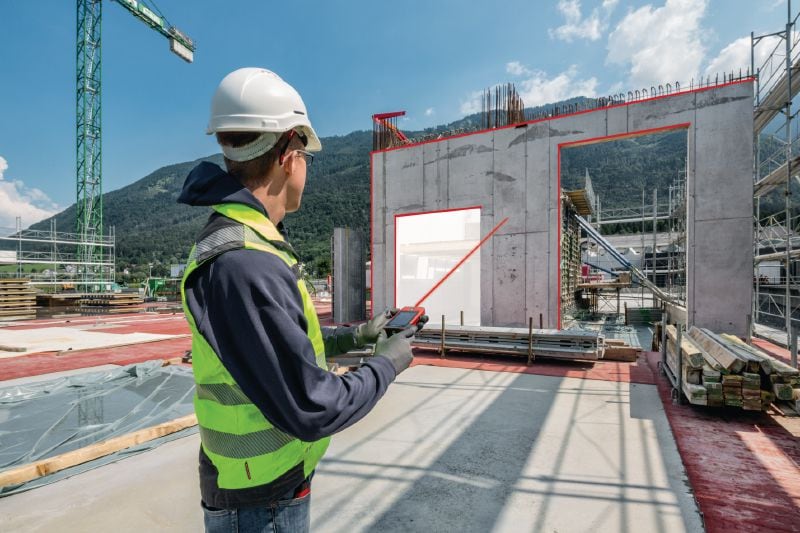

  • Taking difficult outdoor measurements such as scaffolding and roofing dimensions
  • Avoiding bending down to the ground to take measurements, as the PD-CS is compatible with the Hilti PDA 72 long extension (sold separately)

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
