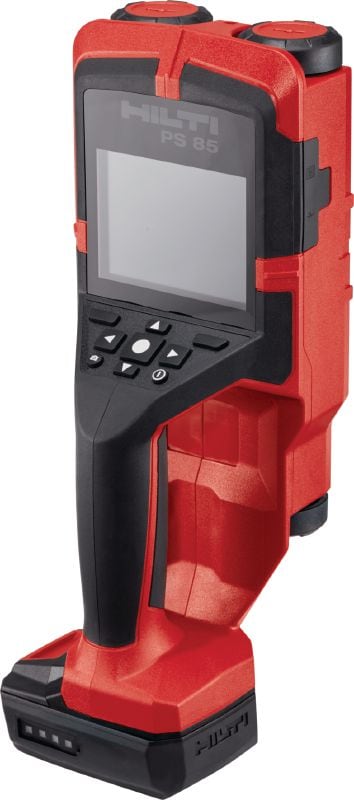

Easy-to-use wall scanner and stud finder for hit prevention when drilling or cutting near embedded objects

  • Max. detection depth for object localization: 200 mm
  • Localisation accuracy: 5to 10 mm (+/-) mm
  • Minimum distance between two neighbouring objects: 40 mm

Technical Data

Max. detection depth for object localization
200 mm 1
Localisation accuracy
5to 10 mm (+/-) mm 2
Minimum distance between two neighbouring objects
40 mm
Data memory (scanner)
Approx. 200 scans (SD) approx. 10 scans (internal flash memory)
Maximum operating time
8 h
Working temperature range
-10 - 50 °C
Dimensions (LxWxH)
264 x 115 x 100 mm
Weight with batteries
1 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

Features & Applications

Features

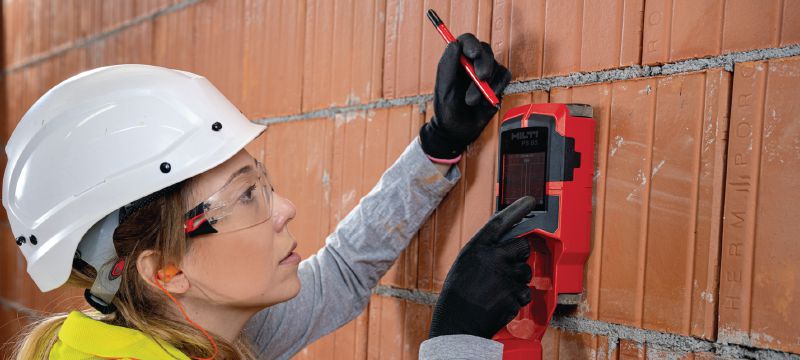

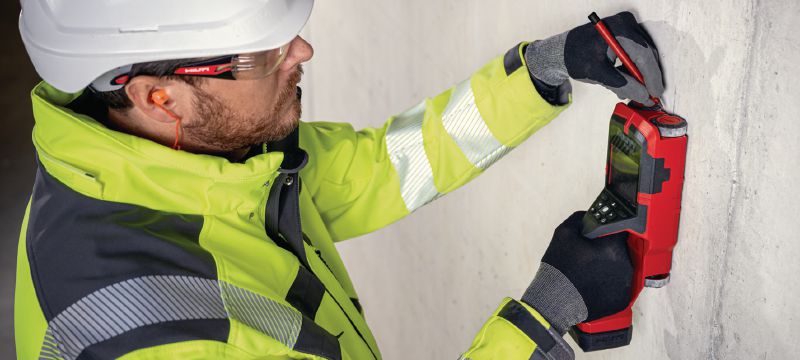

  • Versatile and user-friendly wall scanner to help you avoid damage caused by drilling in the wrong place

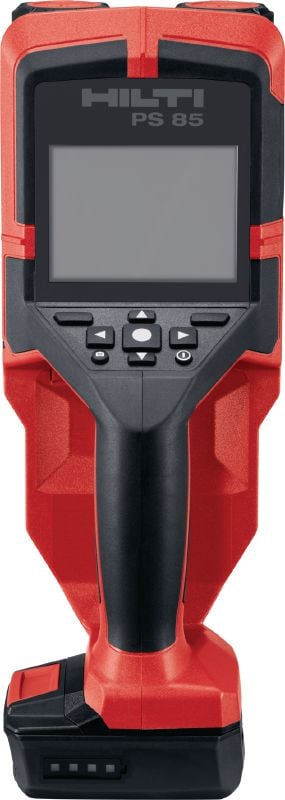

  • Easier to use – large display, efficient menus and the option to export scan data via SD card
  • Upgraded ergonomics – light with large handle to keep the tool firmly in your grip
  • Built to last – shock- and dust- resistant to better withstand construction site conditions

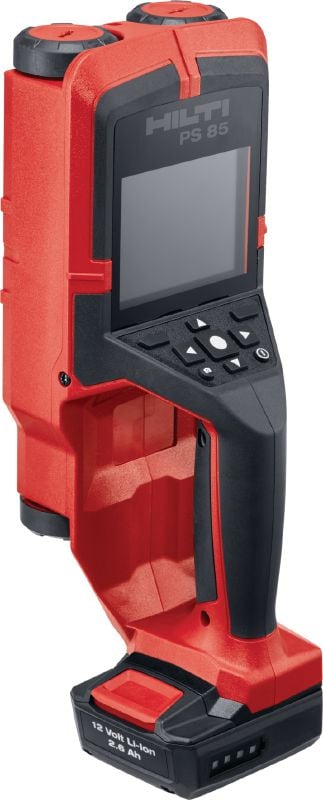

  • Hilti battery platform – power this wall scanner using the same Li-ion batteries (2.6 and 4.0 Ah) as all your other Hilti 12V cordless tools

Applications

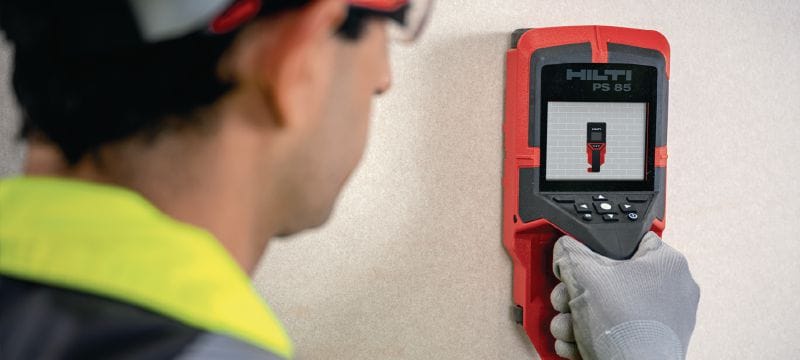

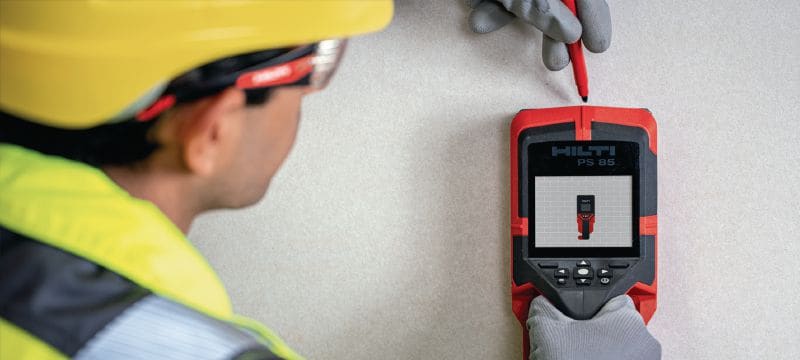

  • Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 85 mm depth, depending on material) on the wall
  • Estimating the material and size of hidden objects – multiple sensors for rebar, live wires, wooden substructures, metal and plastic pipes

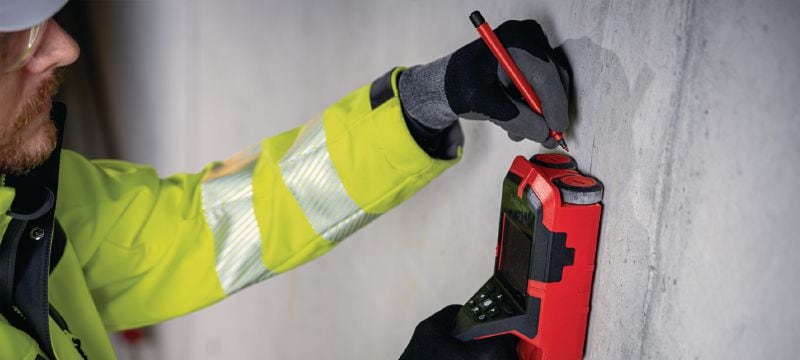

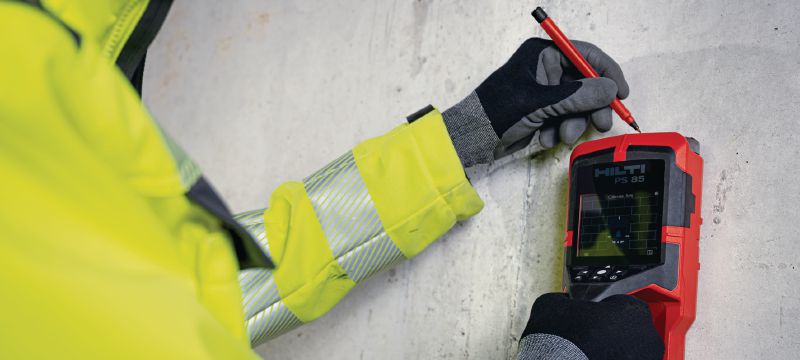

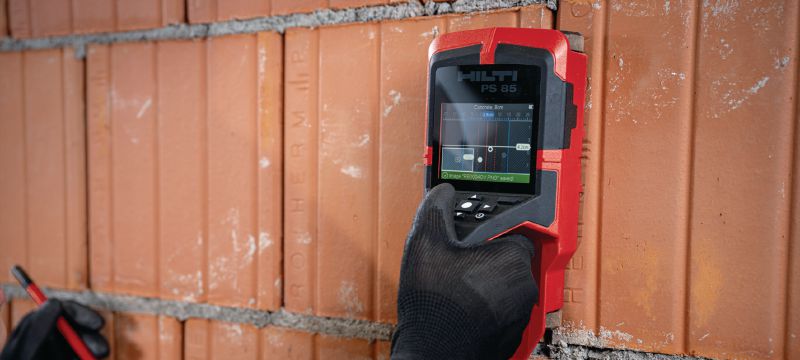

  • Equipped to scan through concrete (wet and dry), brick, plasterboard and tiles
  • Locating embedded objects for hit prevention when drilling, coring, cutting or slitting (up to 3-3/8” depth, depending on material) on the wall

For approval or certificate information, please see individual items.
