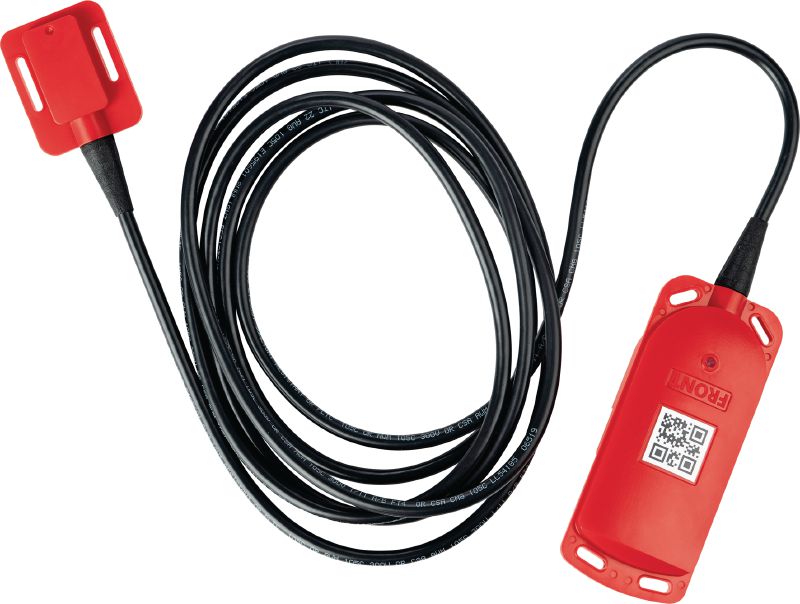

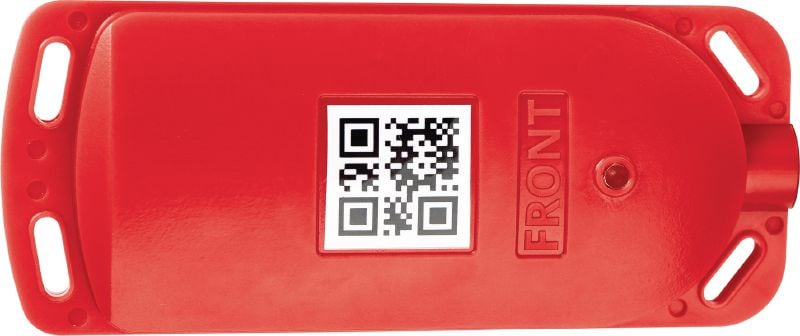

Automatic concrete sensors for monitoring temperature and strength using remote data collection

  • Monitoring: Strength and temperature
  • Data collection: Automatic via Hilti Gateway
  • Data collection frequency: Strength and temperature: every 15 minutes for the first 60 days

Choose options

Data collection
  • Automatic via Hilti Gateway
Cable length Lc
  • 90 cm
  • 245 cm
  • 456 cm
  • No Cable
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 1,000.00

Technical Data

Monitoring
Strength and temperature
Data collection
Automatic via Hilti Gateway
Data collection frequency
Strength and temperature: every 15 minutes for the first 60 days
Standards
Complies with ASTM C1074
Wireless signal range (up to)
304.9 m
Temperature - range
-40 °C - 85 °C

Documents

Features & Applications

Features

  • More efficient scheduling – concrete sensors put real-time curing data at your fingertips to better plan the day’s work
  • Avoid concrete testing delays – shave up to 1-2 days off every pour cycle by switching to live curing data
  • Optimise rental costs – rent equipment only once your concrete is strong enough

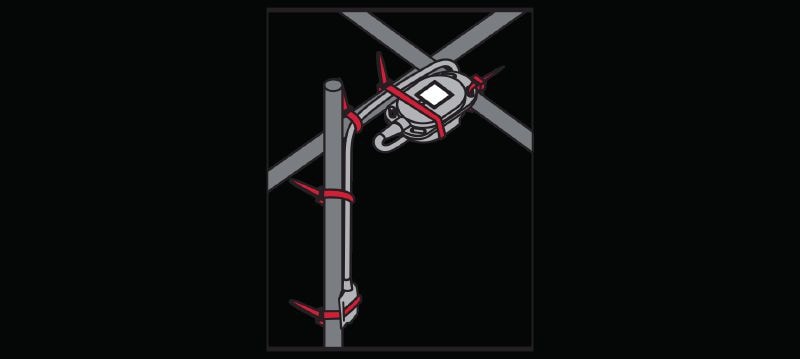

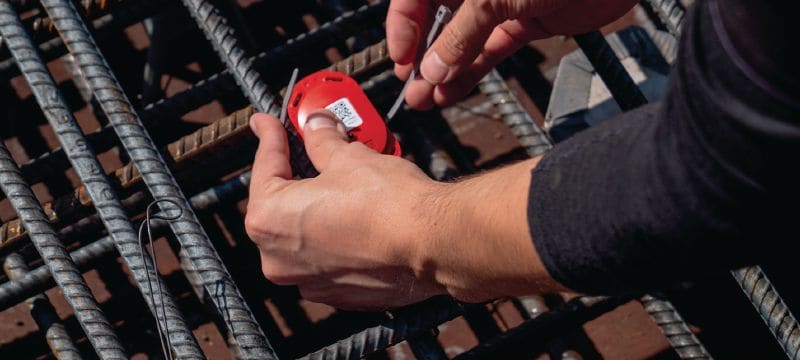

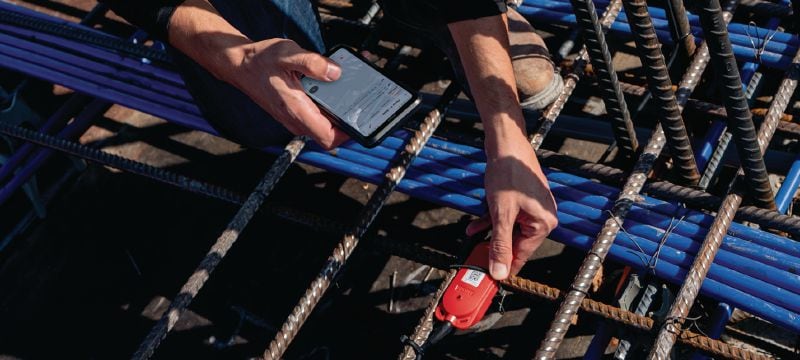

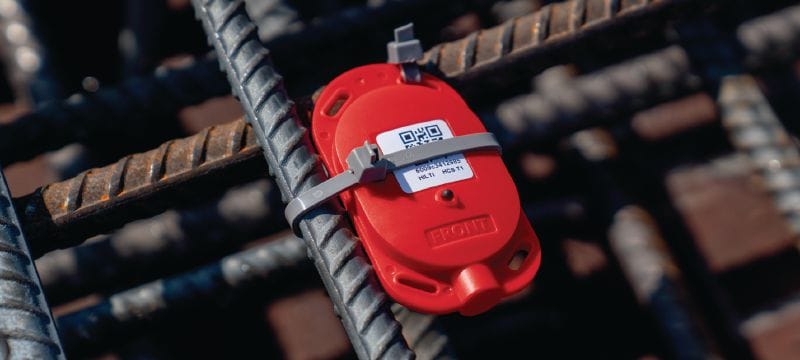

  • Easy to use – simply attach the concrete sensors to rebar using cable ties before you pour, and see the results from anywhere using mobile Apps or desktop software
  • Long-range data transmission – concrete curing progress is delivered automatically and in real time directly to the monitoring software, helping to minimise site visits to check concrete construction progress (Hilti Concrete Sensor Gateway required)

Applications

  • Concrete strength monitoring – know immediately when formwork stripping can take place, and when rental equipment is needed
  • Concrete temperature monitoring – know when to mitigate against extreme temperatures
  • Long-range sensors monitor the concrete continuously and deliver real-time information automatically to cloud-based software which you can access from anywhere. For smaller projects, or when continuous remote monitoring is not needed, we recommend HCS T1 and HCS TH1 Bluetooth®-based concrete sensors
  • For monitoring strength, a laboratory calibration service may be required. Contact your Hilti Sales Representative for further information
  • Requires the rental of a Hilti Gateway for the data collection. Your Hilti sales representative will arrange one on request

For approval or certificate information, please see individual items.
