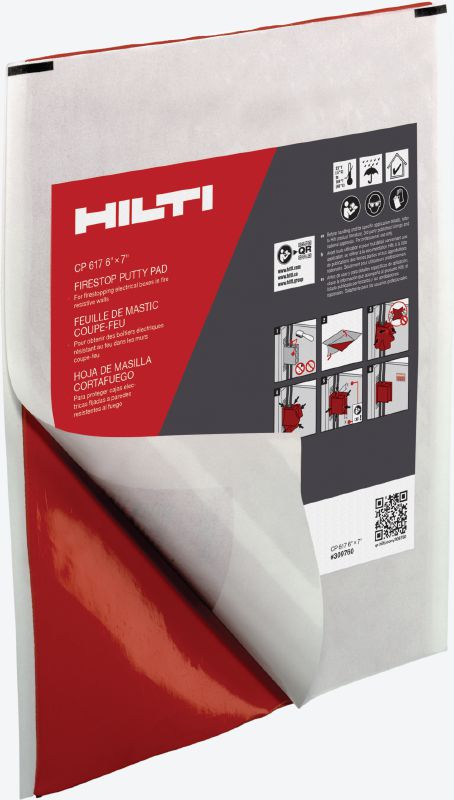

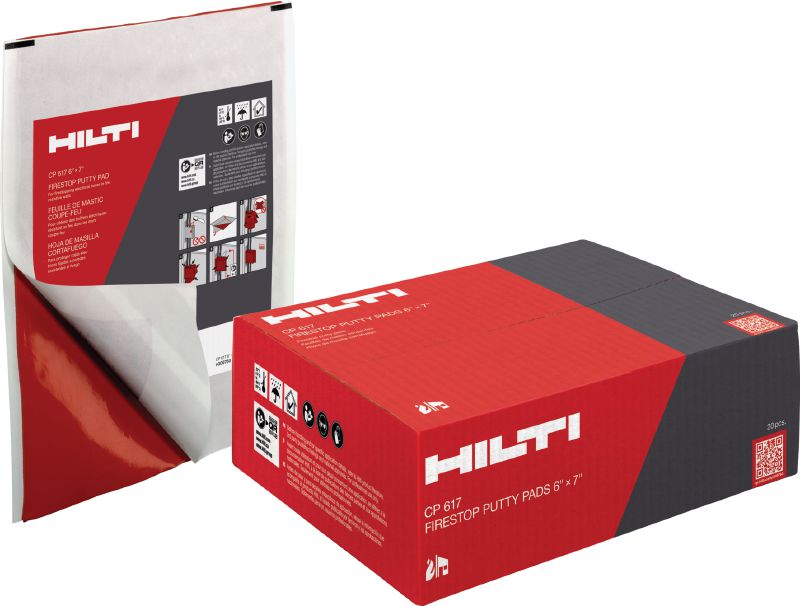

CP 617 firestop putty pad

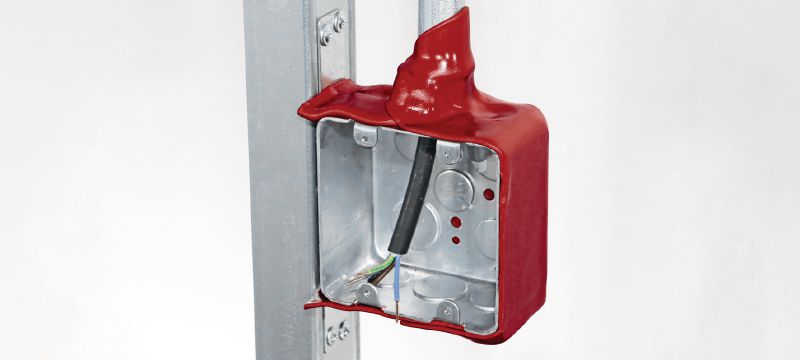

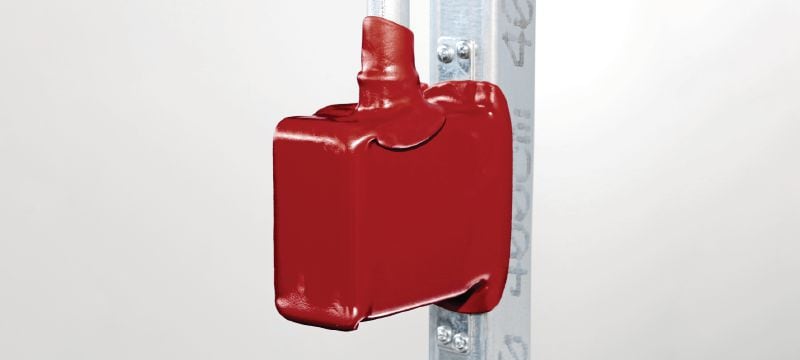

Moldable firestop putty to help protect electrical outlet boxes, junction boxes and metallic washer/dryer boxes
- Base materials: Gypsum, Wood, Metal
- Colour: Red
- Surface burning characteristics UL 723 (ASTM E84): Flame spread: 15<BR>Smoke development: 10
ultimate
Customers also searched for firestop putty Pad, protect electrical outlet boxes, mouldable fire protecting pad, acoustic insulation or through penetration fire sea.
Choose options
Dimensions (LxWxH)
- 177.8 x 177.8 x 3 mm
- 228.6 x 228.6 x 3 mm

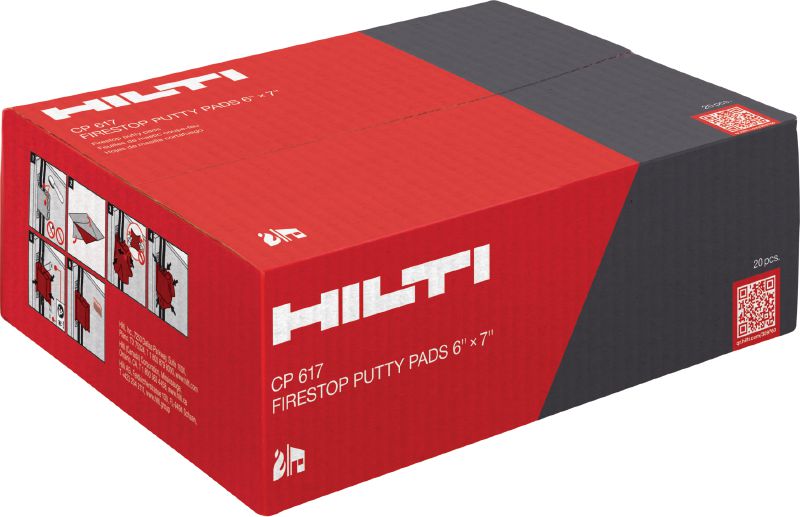

Pack size
- 20 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 1,487.18
Technical Data
Base materials
Gypsum, Wood, Metal
Colour
Red
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 15<BR>Smoke development: 10
LEED VOC
2 g/l
Application temperature range
-0 - 40 °C
Temperature resistance range
-20 - 40 °C
Product class
Ultimate
Documents
Features & Applications
Features
- Excellent adhesion to gypsum, metal and plastic
- Putty remains flexible over time
- Pad can be moulded by hand without leaving residue on the hands
- Quick and simple to install
- Low electrical conductivity
Applications
- Commercial and residential applications
- Acoustically rated drywall - sound transmission classification 59 according to ASTM E90-97 (based on specific construction)
- General gypsum wall assemblies with wood or metal studs

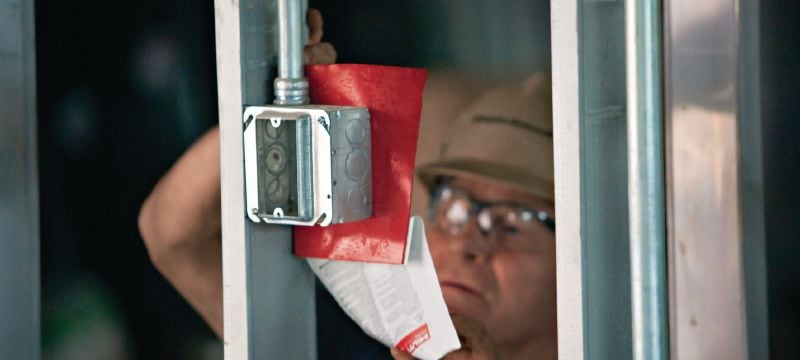

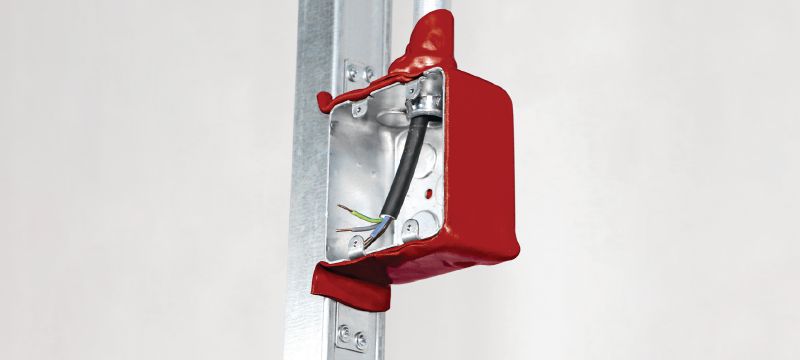

- A mouldable firestop putty designed to help protect electrical outlet boxes
For approval or certificate information, please see individual items.
