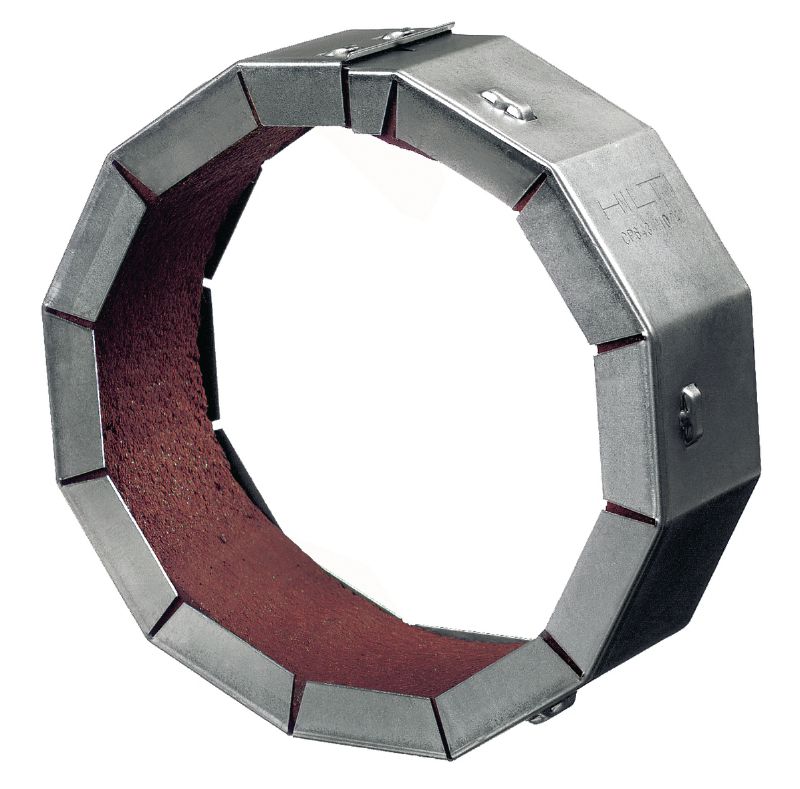

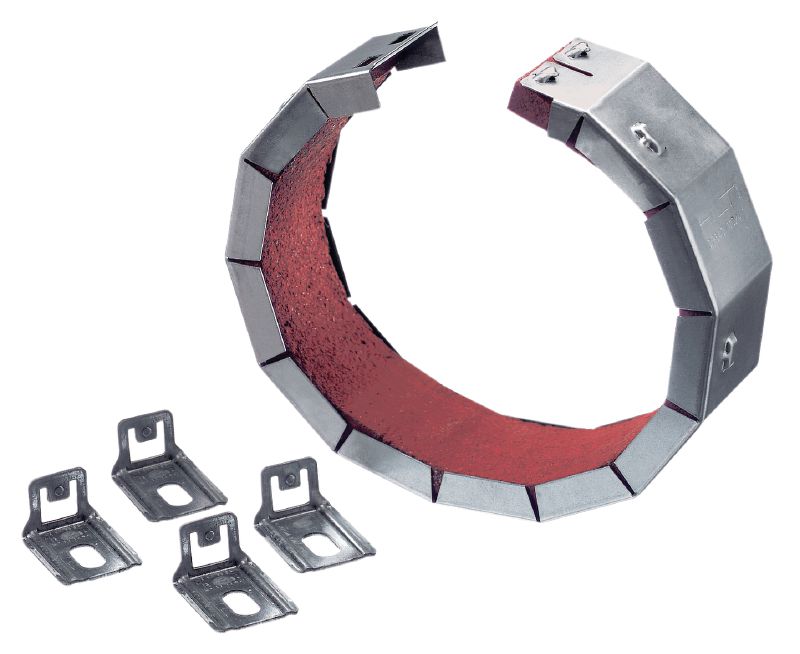

Retrofit firestop collar with a galvanised steel housing for 8" and 10" pipes

  • LEED VOC: 7.6 g/l
  • Expansion ratio (unrestricted, up to): 1:17
  • Expansion temperature (approx.): 210 °C
ultimate

Technical Data

LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:17
Expansion temperature (approx.)
210 °C
Product class
Ultimate

Documents

Features & Applications

Features

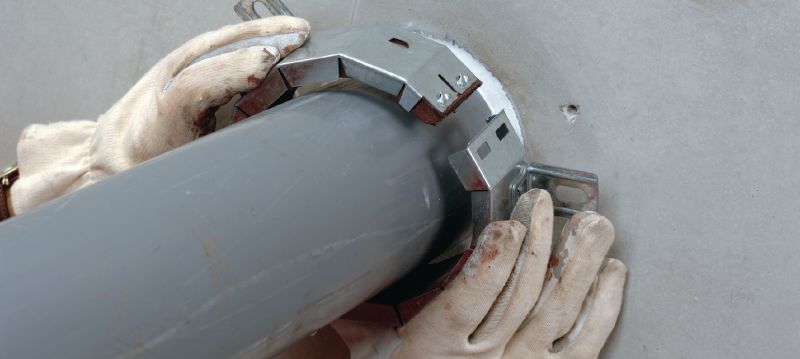

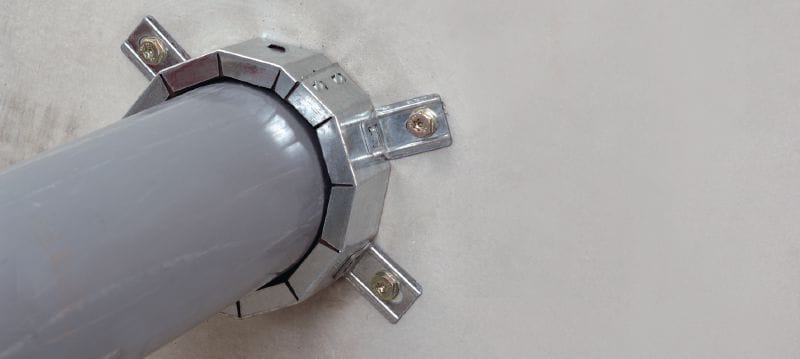

  • Easy firestopping of combustible pipes through fire-rated walls and floors
  • Latch mechanism for quick and easy closure
  • Flexible hook positioning for convenient fastening
  • Can be uninstalled
  • Easy to inspect

Applications

  • Sealing flammable pipes from 32 mm to 250 mm diameter in penetrations through fire compartment walls and floors
  • PVC, HDPE, PP and ABS pipes
  • Pipes with acoustic insulation
  • Walls from 100 mm thick and floors from 150 mm thick
  • Conduit bundles

For approval or certificate information, please see individual items.
