CFS-T STRF system

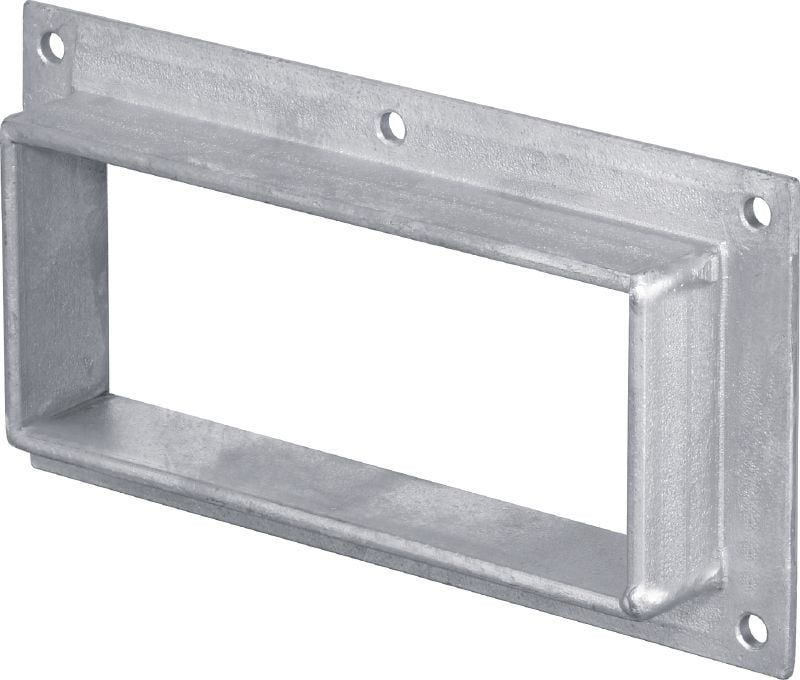

Transit frame CFS-T STRF-150 GS #2042727

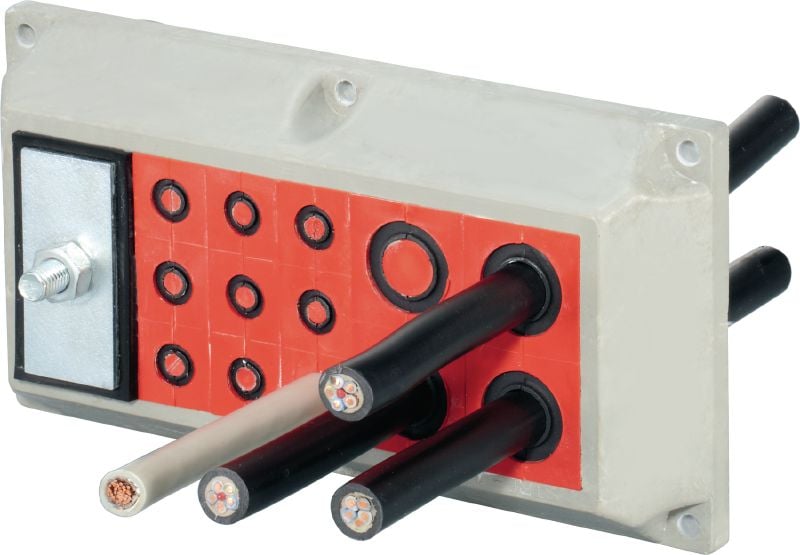

Transit frames for fitting modules to seal cables which penetrate switch cabinets
- Number of frame columns: 1
- Number of frame rows: 1
- Frame size: 150
Choose options
Frame size
- 150
Number of frame columns
- 1
Base materials
- Steel
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
Technical Data
Number of frame columns
1
Number of frame rows
1
Frame size
150
Storage and transportation temperature range
5 - 25 °C
Application temperature range
50 - -20 °C
Documents
pdf Technical manual CFS-T W4529 0424 g, English [ 2.3 MB ]
Features & Applications
Features
- Simplified inventory management – only 4 different modules are needed to cover all cable diameters from 3 to 33 mm
- Seals cables and pipes against dust and splashed water (up to safety class IP-65)
- Frames available in two standard sizes (inner width of 60 mm, inner length of 150 or 210 mm)

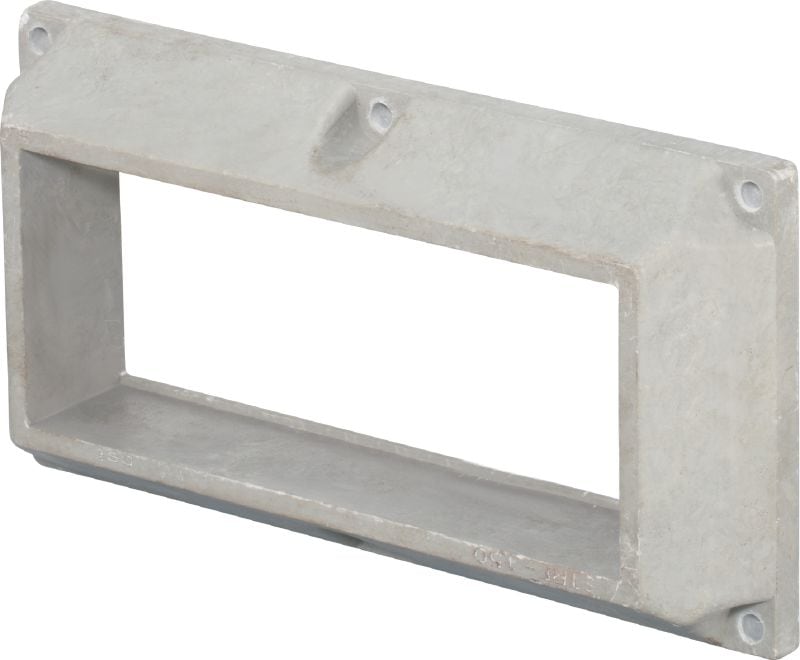

- Frames available in glass-fibre and galvanised steel
Applications

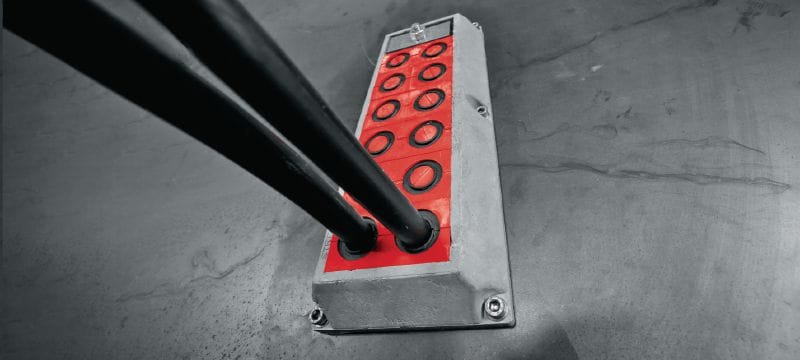

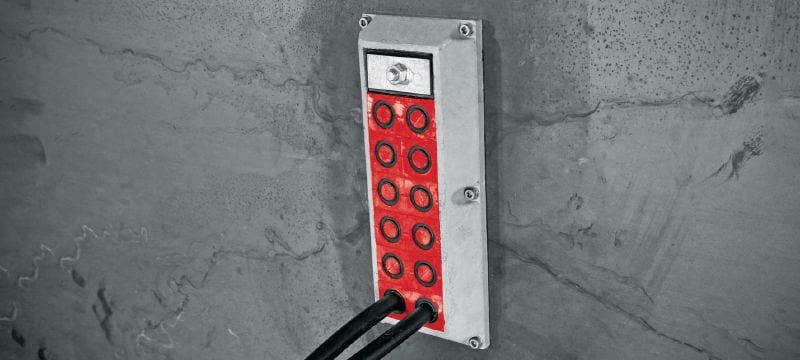

- Sealing cables, pipes and other conduits leading into switch cabinets, appliances and casings
