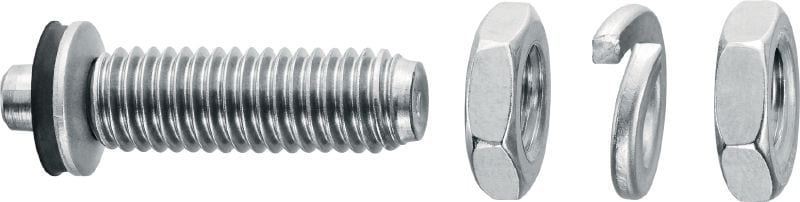

X-BT-ER Stainless steel threaded studs

Threaded stud for electrical connectors on steel in highly corrosive environments

  • Base materials: Steel, Stainless steel, Cast iron
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Corrosion protection equivalent to A4(316)
ultimate

Customers also searched for X-BtS-BT or Electrical .

Technical Data

Base materials
Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Corrosion protection equivalent to A4(316)
Environmental conditions
Outdoor, areas with heavy industrial pollution
Material
Duplex stainless steel (1.4462)
Point type
Blunt tip
Approvals
ABS, BV, DNV, LR, UL
Product class
Ultimate

Documents

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
  • Portable, cordless system – eliminates the need for long electric supply cords
  • Fast – ideal for fastening directly to coated or treated steel
  • Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection
  • Bonding and earthing/grounding

For approval or certificate information, please see individual items.
