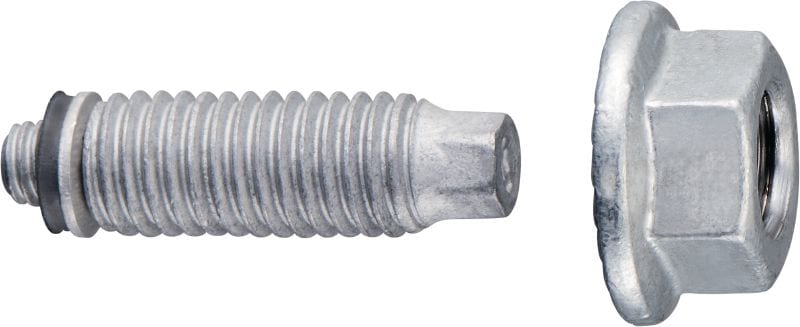

S-BT-MF HL threaded stud
New product UltimateItem #r14656084
Threaded screw-in stud (multilayer coated carbon steel – corrosion protection comparable to HDG) for multi-purpose fastenings on steel in mildly corrosive environments
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Duplex coating equivalent to 45 µm hot-dip galvanized
Share
Features
- The S-BT MF is easier and more reliable – no electric supply cords or heavy equipment needed for installation
- Suitable for use in mildly corrosive environments (C3) on coated steel
- Easy installation in tight spaces
- No rework necessary on coated steel
- Compatible with Hilti MT installation channels
Applications
- General fastenings on steel structure with a thickness of 6 mm (1/4") and greater
- Fastening cable ladders using channels or hold-down/expansion guide clips
- Fastening cable trays and cable runs using channels or conduit clips
- Fastening junction boxes, switchgear and instrumentation panels directly or using channels
- Fastening lighting fixtures, signage etc.
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA-23/0001 S-BT-HL 2023-02-16, English, German, [ 2.5 MB ]
- BV Type Approval 74271/A0_BV for S-BT-MR / -MF HL, S-BT-GR / -GF HL, S-BT-ER / -EF HL fastening system in off-shore and shipbuilding application., English, [ 530.5 kB ]
- DNV Type Approval Certificate TAS00003NW for S-BT HL fastening system in off-shore and shipbuilding application., English, [ 488.9 kB ]
- ABS Type Approval 23-2361769-PDA for S-BT HL fastening system in off-shore and shipbuilding application., English, [ 1.8 MB ]
- RINA Type Approval FPE035023CS/001 for S-BT-MR / -MF HL, S-BT-GR / -GF HL, S-BT-ER / -EF HL, X-FCM-R (NG), X-FCM-F (NG) and X-FCS-R fastening system in off-shore and shipbuilding application., English, [ 125.1 kB ]
