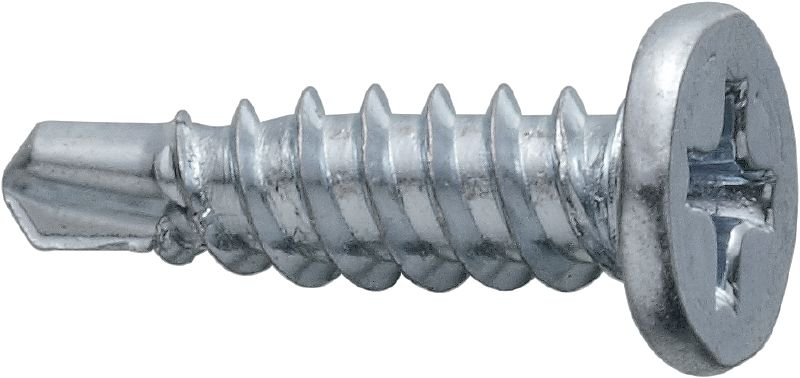

S-AD01LHSS Self-drilling facade screws

Self-drilling screw (A4 stainless steel) without washer for aluminium façade fastenings (up to 3 mm)

  • Screw drive/recess type: PH #2
  • Base materials: Carbon steel, Aluminium
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
premium

Technical Data

Screw drive/recess type
PH #2
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
4.8 mm
Screw head diameter
9 mm
Product class
Premium
Washer type
none

Documents

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Fast and robust drill tip
  • For reliable fastenings with defined load values
  • Extra-low head geometry for assembly of composite aluminium façade panels
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening aluminium façade systems
  • Stainless steel (A4) for fastening in highly corrosive environments
  • Thin metal-to-metal connections (up to 3 mm)
  • Assembling composite aluminium façade panels
  • Fastening clamps on aluminium profiles

For approval or certificate information, please see individual items.
