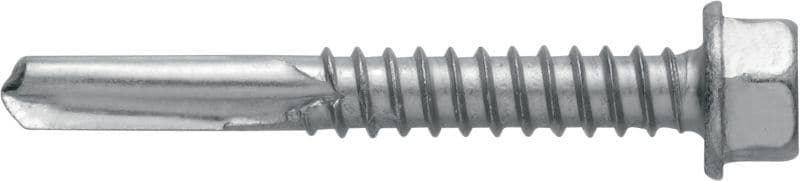

S-MD 05Z Self-drilling metal screws

r43205,r43224

Self-drilling screw (zinc-plated carbon steel) without washer for thick metal-to-metal fastenings (up to 15 mm)

  • Screw drive/recess type: Hexagon 8
  • Base materials: Carbon steel
  • Environmental conditions: Dry indoor
premium

Customers also searched for metal screws, screw fastenings, steel sheeting fastening, fastening steel or screws.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Screw drive/recess type
Hexagon 8
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
5.5 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none

Documents

pdf ETA-10/0182_for_SM_screws_2019-05-02_(de-en-fr), German, English, French [ 6.9 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade
  • Galvanised carbon steel

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Thick metal-to-metal connections (up to 15 mm)

For approval or certificate information, please see individual items.
