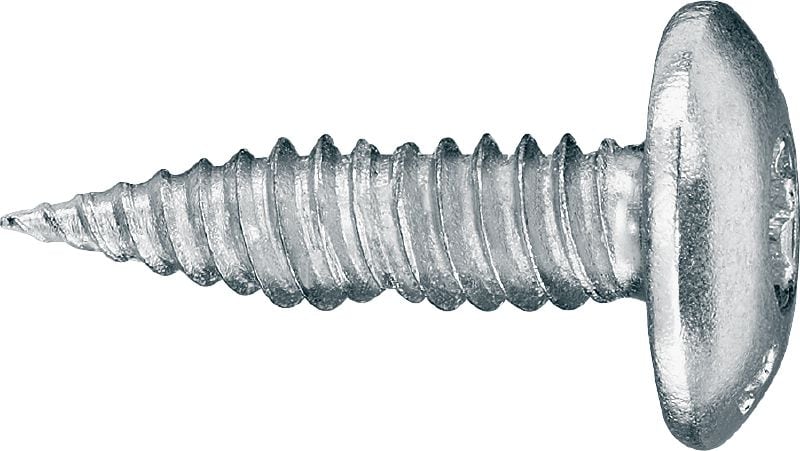

S-MS 01PS Self-drilling sheet metal screws
Self-drilling screw (A2 stainless steel) without washer for chipless fastening of thin metal sheets (up to 2x 1.0 mm)
- Screw drive/recess type: TX 25
- Base materials: Carbon steel, Aluminium
- Screw type: Metal screws
premium
Technical Data
Screw drive/recess type
TX 25
Base materials
Carbon steel, Aluminium
Screw type
Metal screws
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
4.8 mm
Length
20 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Fast and sharp screw tip for chipless fastening and no work for cleaning metal chips
- Pan head for improved aesthetics and better accessibility in tight spaces
- Attractive final appearance – screw head can be coloured to match the façade
- High load values
Applications
- Fastening thin metal sheets (up to 2x 1.0 mm)
- Stainless steel (A2) for fastening in mildly corrosive environments
- Fastening liner trays, joints between trapezoidal profile sheets and longitudinal overlaps of wall cassettes
- Fastening overlap joints in loadbearing (decking) sheets
- Joints between trapezoidal profile sheets
For approval or certificate information, please see individual items.
