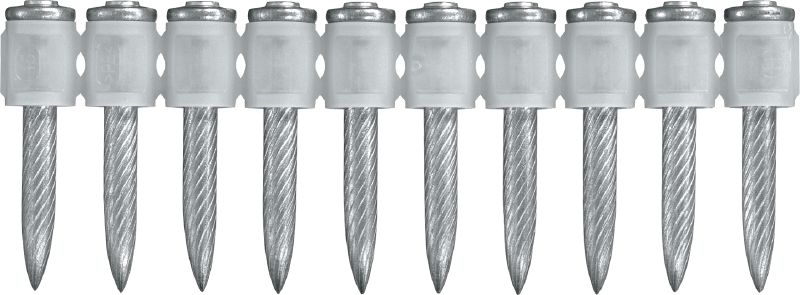

X-U MX Steel/concrete nails (collated)

Ultimate-performance collated nails for fastening to concrete and steel using powder-actuated tools

  • Base materials: Concrete (soft), Concrete (tough), Steel
  • Minimum thickness of base material (concrete): 80 mm
  • Minimum thickness of base material (steel): 6 mm
premium

Customers also searched for concrete nailscollated nailsdrywall tracknails or direct fastening.

Technical Data

Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Point type
Ballistic point, knurled
Approvals
COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)

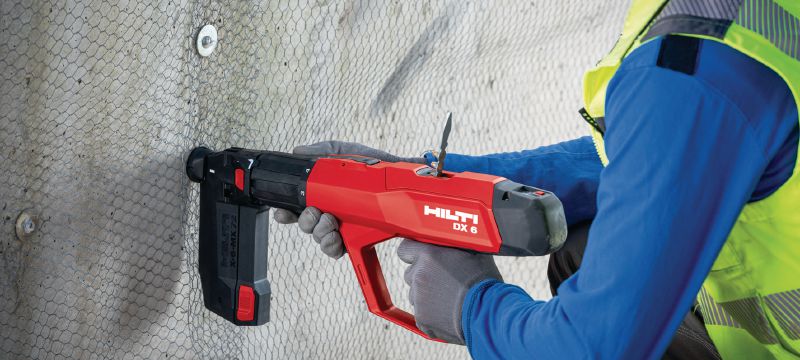

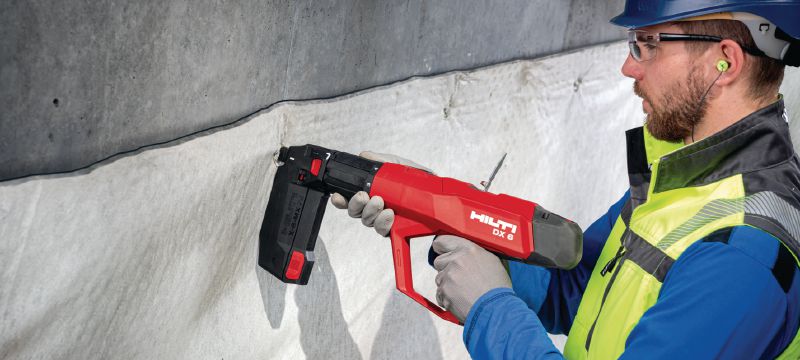

DX 5, DX 6
Product class
Premium

Documents

Features & Applications

Features

  • Galvanised nail for fastening to concrete or steel
  • Higher application limits, higher ultimate tensile loads
  • Available in lengths up to 72 mm
  • Fully-knurled point for increased performance on high-strength steel and hard concrete
  • Strips of 10 collated nails – for extremely high productivity and easier fastener loading

Applications

  • Fastening to concrete or steel
  • Fastening metal track for plasterboard/dry lining to concrete
  • Fastening wall ties
  • Fastening wood to concrete
  • Setting up formwork and safety barriers

For approval or certificate information, please see individual items.
