new

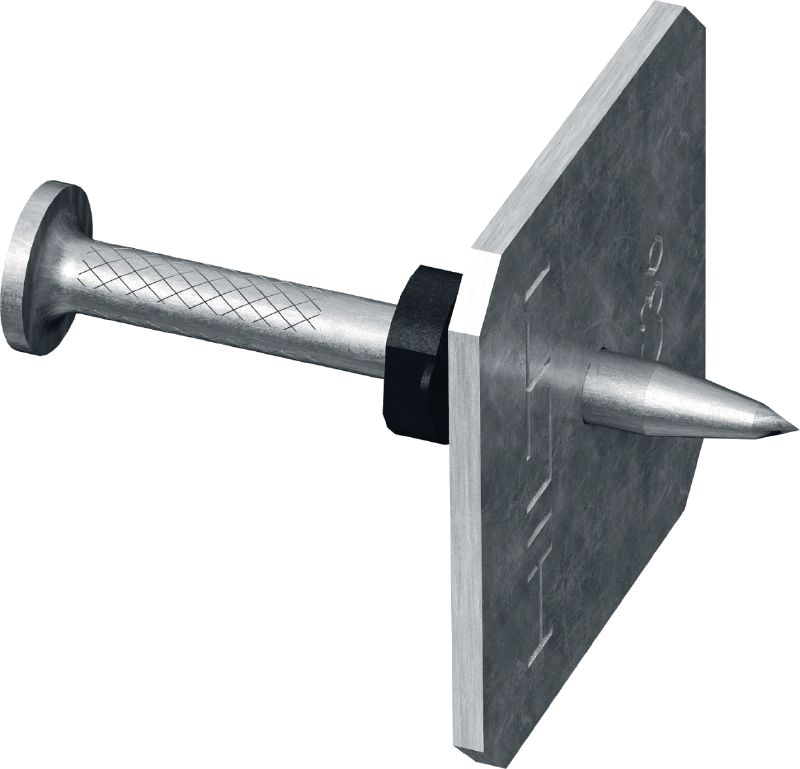

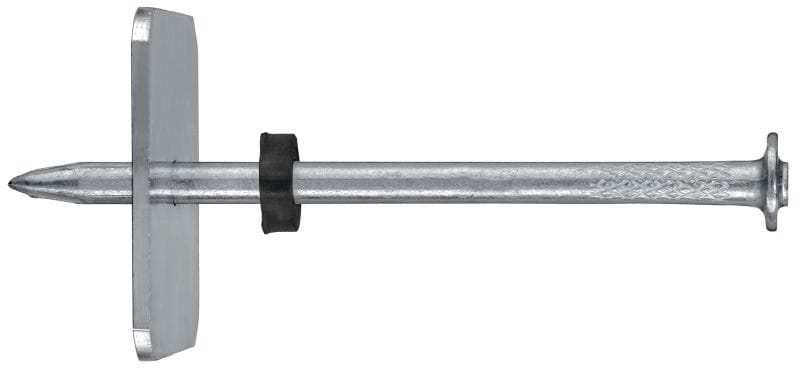

X-C P8S Concrete nails with washer

Concrete nail X-C 27 P8 S23 #2091396

General-purpose nail for concrete, with steel washer

Premium single nail with steel washer for fastening to concrete using powder-actuated tools

Base materials: Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete): 80 mm
Corrosion protection: Galvanised zinc coated <20 µm

Customers also searched for Single nail for concrete, Concrete nail with washer, Concrete fastener with washer, Powder-actuated fastener or Single fastener with washer.

Choose options

Fastener shank length

27 mm

Pack size

1000 pc

Product options

Quantity

Packs

Total Piece

1000

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 1,824.14

AED 1.82 / 1 Piece

Technical Data

Base materials

Concrete (soft), Masonry (solid limestone brick)

Minimum thickness of base material (concrete)

80 mm

Corrosion protection

Galvanised zinc coated <20 µm

Environmental conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

3.5 mm

Washer size

23 mm

Point type

Cut point

Approvals

ICC-ES

For use with (tools)

DX 2, DX 36, DX 460 F8, DX 5 F8, DX E721 F8

Documents

Features & Applications

Features

Fastener with pre-mounted washer providing a larger bearing surface for improved clamping of fastened material
Pre-mounted steel washer offers maximum pull-over resistance for fastening soft materials to concrete
Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
Best suited for fastening to concrete with a hardness of up to 6,000 psi

Applications

Fastening wood to concrete, e.g. 2x4s, plywood, wood battens, formwork, kicker plates
Attaching a variety of materials to masonry block and concrete
Fastening wood profiles to concrete
Fastening termination bars to secure waterproofing membrane or moisture barriers
Wood to concrete, e.g. formwork boards, safety barriers, etc.
