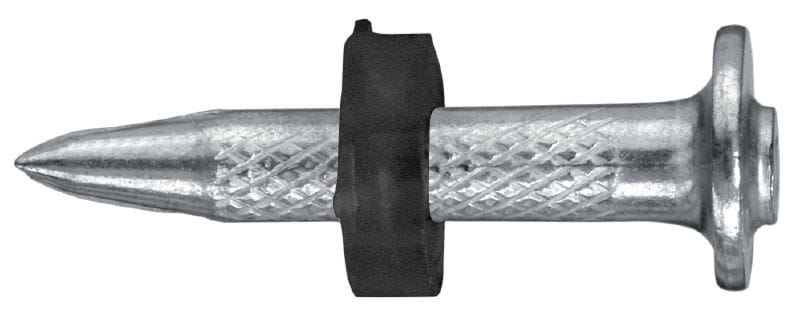

X-C P8 Masonry nails
Single nail for fastening to concrete using powder-actuated tools
- Base materials: Concrete (soft), Masonry (solid limestone brick)
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
standard
Customers also searched for Single nail for concrete, Concrete nail, Concrete fastener, Powder-actuated fastener or Single fastener.
Technical Data
Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.5 mm
Point type
Cut point
Approvals
ICC-ES
For use with (tools)
DX 2, DX 351, DX 5, DX 6
Product class
Standard
Documents
Features & Applications
Features
- Fastener for attaching a variety of thin materials to masonry block and concrete
- Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
- Best suited for fastening to concrete with a hardness of up to 6,000 psi
- Best suited for fastening to concrete with a hardness of up to 6,000 psi
Applications
- Fastening drywall track to concrete
- Attaching wire mesh and thin sheet metal to concrete, sand-lime block and solid brick
- Fastening brick ties to masonry or concrete
- Fastening HVAC duct strapping or suspended ceilings on normal-strength concrete
- Securing electrical junction boxes, conduits and cables to masonry block or concrete
For approval or certificate information, please see individual items.
