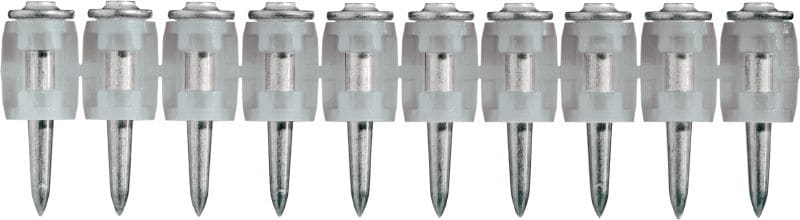

X-GHP MX Concrete nails (collated)

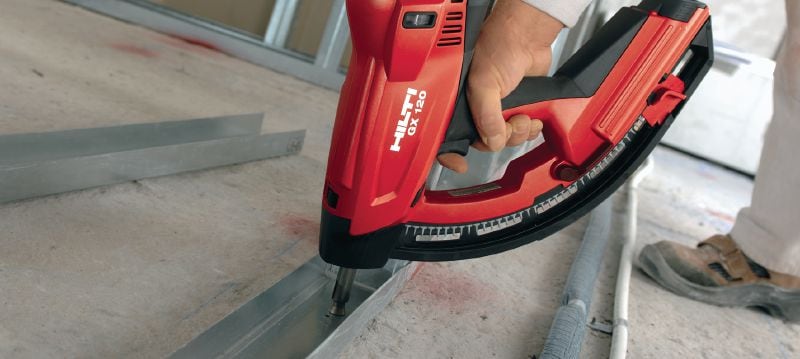

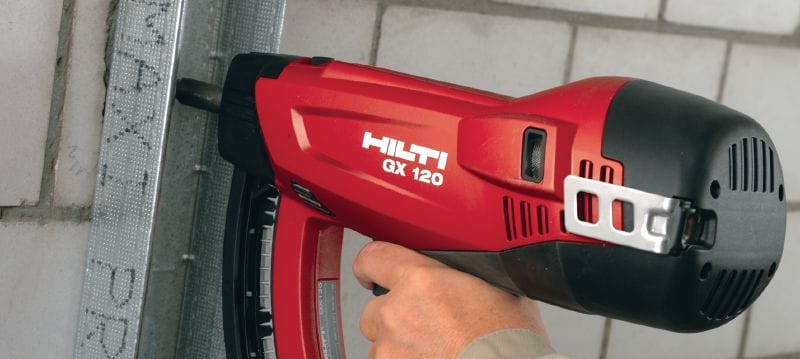

Ultimate-performance collated nails for fastening to concrete and other base materials using the GX 120 gas nailer
- Base materials: Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Masonry (grout filled concrete block)
- Minimum thickness of base material (concrete): 60 mm
- Corrosion protection: Galvanised zinc coated <20 µm
premium
Customers also searched for nails for gas-actuated tools, direct fastening, gas actuated tools, Drywall Applications or Electrical & Mechanical Fastenings.
Technical Data
Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Masonry (grout filled concrete block)
Minimum thickness of base material (concrete)
60 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3 mm
Point type
Ballistic point
Approvals
IBMB
For use with (tools)
GX 120
Product class
Premium
Documents
Features & Applications
Features
- Ultimate-performance nail for soft and some tough concrete
- Long, conical tip and high hardness – for excellent fastening quality
Applications
- Fastening to soft and some tough concrete
- Fastening to solid masonry
- Fastening on filled block
For approval or certificate information, please see individual items.
