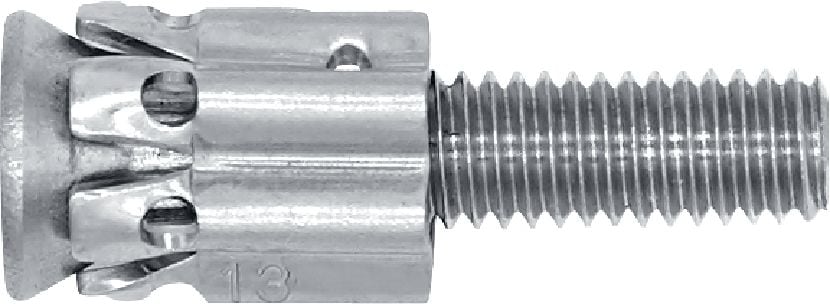

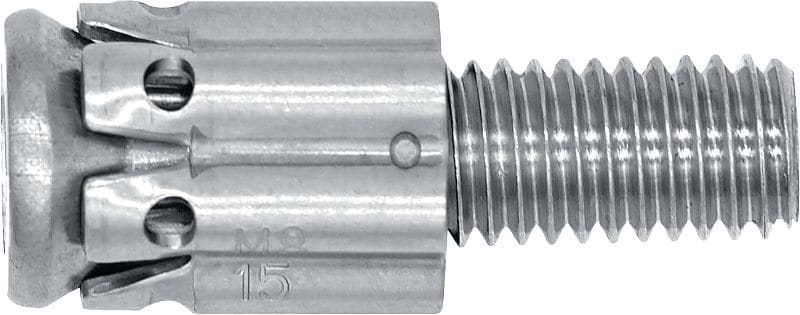

HSU-R Stone undercut anchor

Stone undercut anchor HSU-R M6x13 / 15 #2179424

Ultimate-performance undercut anchor for stone

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA

Choose options

Anchor size
  • M6
Standard embedment depth
  • 13 mm
Max. fixture thickness at standard embedment depth
  • 10 mm
Pack size
  • 250 pc
Product options
Quantity
Packs
Total Piece
250
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 2,153.64

AED 8.61 / 1 Piece

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA
Max. fixture thickness at standard embedment depth
10 mm
PROFIS software
No

Documents

Features & Applications

Features

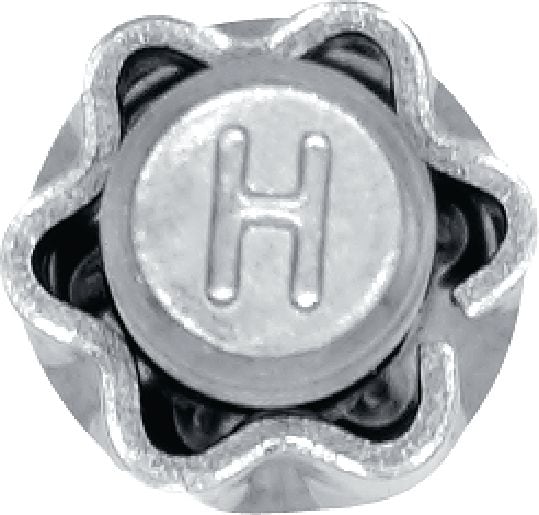

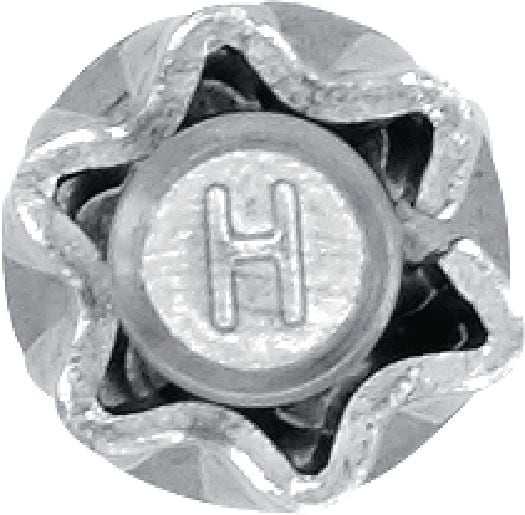

  • Head marking and unique wave design for easier identification after installation
  • Patented unique wave design reduces spinning and minimises sleeve drop-off during panel assembly
  • Clear red marking shows when anchor undercut is complete
  • Designed for fastening façade slabs of natural stone including granite, marble, sandstone and limestone (as per EN1469:2004)

Applications

  • Granite cladding
  • Marble cladding
  • Limestone cladding
  • Sandstone cladding
  • Nature stone facade
