HRD-HR Plastic frame anchor

High-performance plastic anchor for frames (A4 stainless steel, hex head)

  • Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire

Customers also searched for chiselingconcrete demolitionplastic anchoranchoring hand rails or anchoring.

Technical Data

Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Hex head
Approvals / test reports
ETA, Fire
Material, corrosion
Stainless steel, A2, Stainless steel, A4
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)
Type of fastening
Through-fastening

Documents

Features & Applications

Features

  • Flexible embedment depth (approved at 50 mm and 70 mm embedment depth) - the ideal anchor for a huge range of applications in virtually all base materials
  • Suitable for fastening thicknesses up to 150 mm (anchor lengths from 60 mm to 200 mm)
  • Available in 4 different materials for optimum suitability in all corrosive environments
  • Pre-assembled for optimum handling and fastening quality

Applications

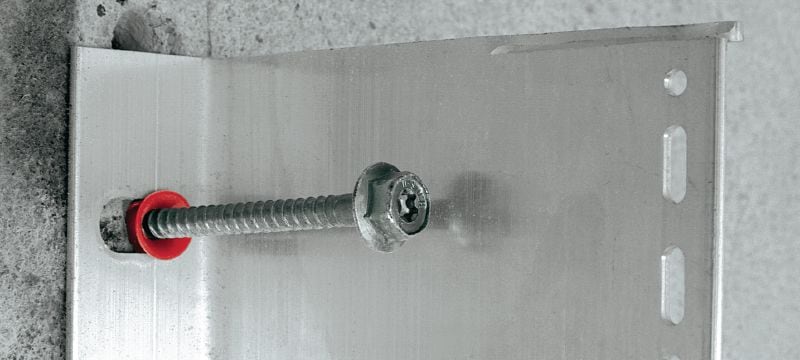

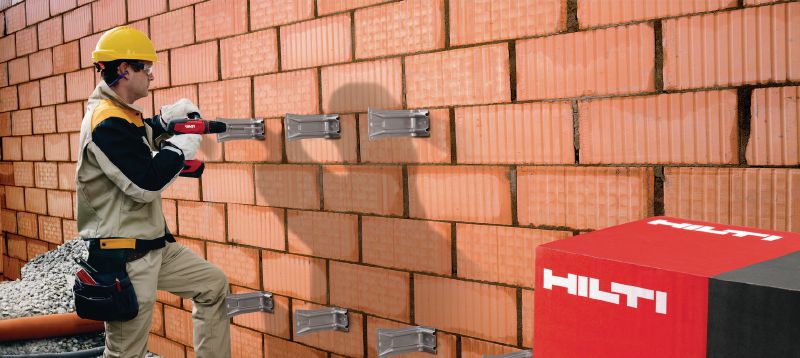

  • Fastening metal substructures for ventilated facades
  • Typical applications for metal fabricators such as fastening handrails, window bars, railings, balustrades, etc.

For approval or certificate information, please see individual items.
