HRD-C Plastic frame anchor

High-performance plastic frame anchor (carbon steel, countersunk head)

  • Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
  • Head configuration: Countersunk
  • Approvals / test reports: ETA, Fire, Fire (For more details please check the fire approval)

Customers also searched for plastic anchorplastic frame anchoranchoring railingsanchors or anchoring.

Technical Data

Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Countersunk
Approvals / test reports
ETA, Fire, Fire (For more details please check the fire approval)
Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Type of fastening
Through-fastening

Documents

Features & Applications

Features

  • Flexible embedment depth (approved at 50 mm and 70 mm embedment depth) - the ideal anchor for a huge range of applications in virtually all base materials
  • Suitable for fastening items with a thickness of up to 260 mm (anchor lengths from 60 mm to 310 mm)
  • Available in 3 different materials for optimum suitability in all corrosive environments
  • Pre-assembled for optimum handling and fastening quality

Applications

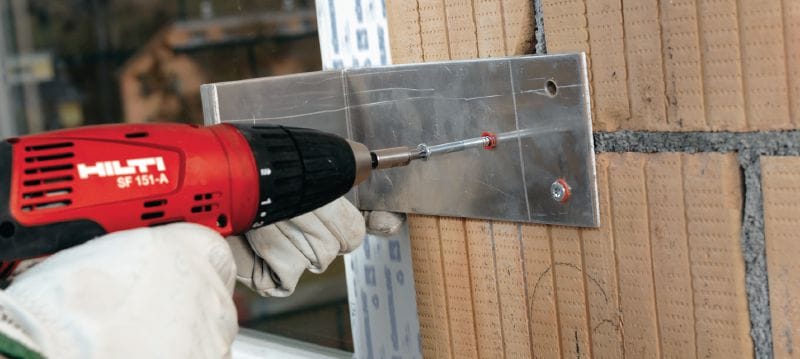

  • Typical applications for metal fabricators such as fastening handrails, window bars, railings, balustrades, etc.

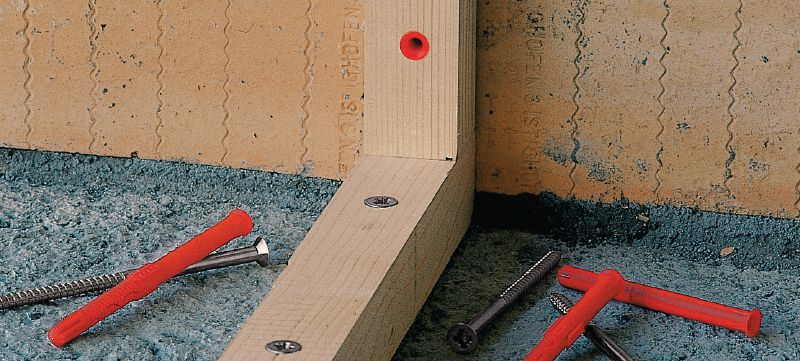

  • Fastening wooden substructures for ventilated facades
  • Fastening door and window frames

For approval or certificate information, please see individual items.
