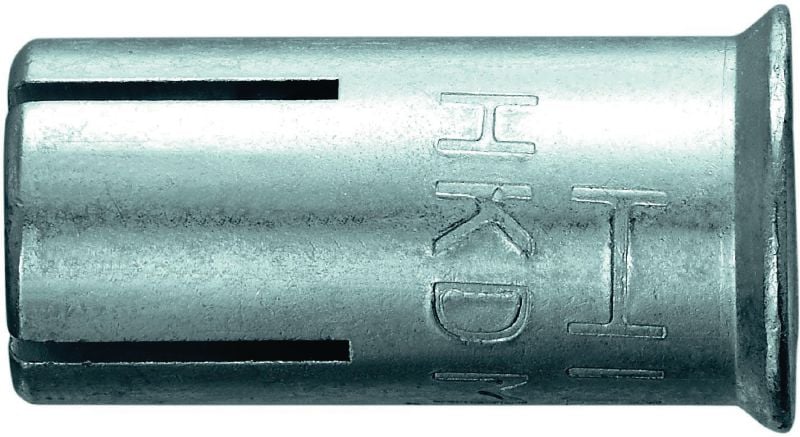

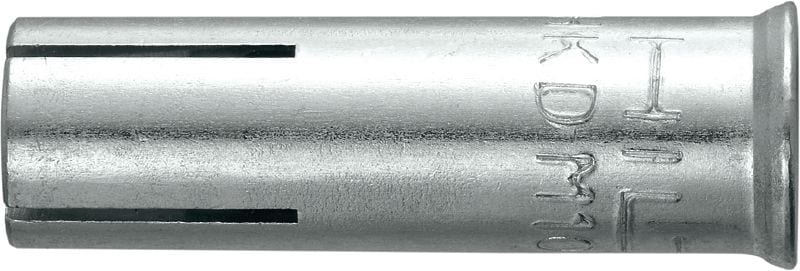

HKD Drop-in anchor (metric)

High-performance carbon steel tool-set drop-in anchor with metric thread

  • Environmental conditions: Dry indoor
  • Approvals / test reports: DIBt, ETA, Fire, FM (Factory Mutual)
  • Material, corrosion: Carbon steel, zinc-plated

Customers also searched for suspending sprinkler systemshanging pipesfastening threaded rod to concreteanchors or anchoring.

Choose options

Internal thread size
  • 6 mm
  • 8 mm
  • 10 mm
  • 12 mm
  • 16 mm
Anchor length
  • 25 mm
  • 30 mm
  • 40 mm
  • 50 mm
  • 65 mm
Anchor size
  • M6
  • M8
  • M10
  • M12
  • M16
Pack size
  • 1 pc
  • 25 pc
  • 50 pc
  • 100 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 143.79

Technical Data

Environmental conditions
Dry indoor
Approvals / test reports
DIBt, ETA, Fire, FM (Factory Mutual)
Material, corrosion
Carbon steel, zinc-plated
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes
Installation tools
TE 6-A36 Cordless rotary hammer

Documents

Features & Applications

Features

  • “Intelligent” stepped expansion cone allows easy, correct setting even in harder materials
  • Available in a variety of sizes for maximised coverage of applications
  • Visual check for correct setting when used with the Hilti setting tool
  • Features a lip for flush setting regardless of hole depth
  • Shallow drilling depth (25 mm)

Applications

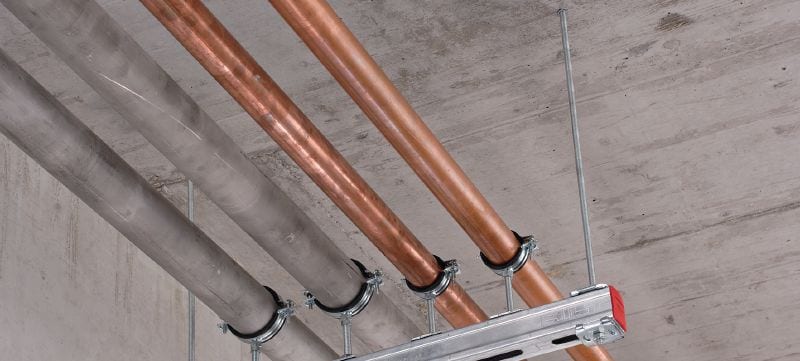

  • Medium-duty loads with anchor bolts and threaded rods, e.g. suspension systems for pipes, air ducts, sprinkler systems, etc.

For approval or certificate information, please see individual items.
