HST2 V3 wedge anchor

Stud anchor HST2 V3 M10x100 5-35 #2345251

L133878 (3690714)
L133883 (3690736)
L153182_cropped (4099713)
L153172_cropped (4099707)
L146421_cropped (2587822)

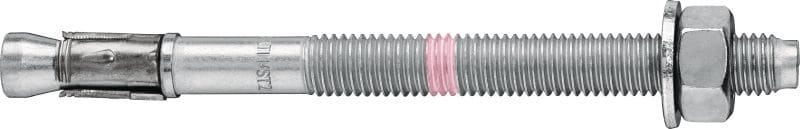

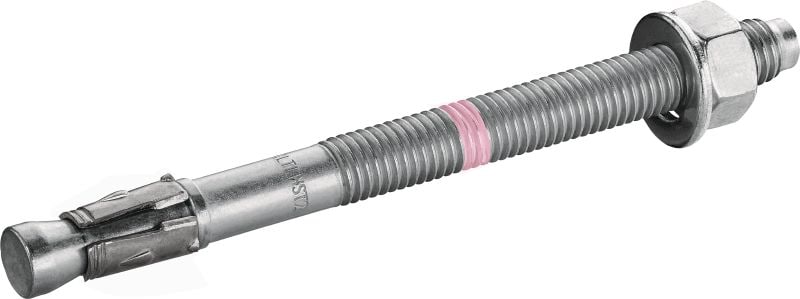

High-performance wedge anchor (M8-M16) for static and seismic loads in cracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • PROFIS software: Yes

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
Anchor length
  • 70 mm
  • 90 mm
  • 100 mm
  • 110 mm
  • 115 mm
  • 130 mm
  • 140 mm
  • 145 mm
  • 165 mm
Pack size
  • 16 pc
  • 25 pc
  • 40 pc
  • 80 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
40
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 380.95
AED 9.52
/
1 Piece

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
PROFIS software
Yes

Documents

pdf Product Technical Datasheet – HST2 V3 Expansion Anchor, Steel-to-Concrete (EN, 02/2026), English [ 1.2 MB ]

Features & Applications

Features

  • High-performance – enhanced wedge and sleeve design for improved pull-out loads in cracked concrete conditions, allowing you to optimise anchor length and embedment
  • Faster and easier installation – instal our full range of anchors quickly with our Adaptive torque compatible tools and without the need for borehole cleaning
  • Variable embedment depths – instal with shallow anchor embedment for productivity or deep anchor embedment for increased performance with flexible edge and spacing distances
  • Efficient designs – pair with PROFIS Engineering software to simplify the design of steel-concrete connections

Applications

  • Fastening baseplates, handrails, façade systems and mechanical, electrical or plumbing supports to concrete
  • Fastening in cracked and uncracked concrete required for building code compliance
  • Qualified to resist seismic actions and loads (M10-M16)
  • Suitable for dry indoor use
